11 31 573 Adjusting camshaft timing on left side (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

(cylinder bank 5 to 8)

Necessary preliminary tasks:

Get set of special tools 2 249 117 ready for securing camshafts.

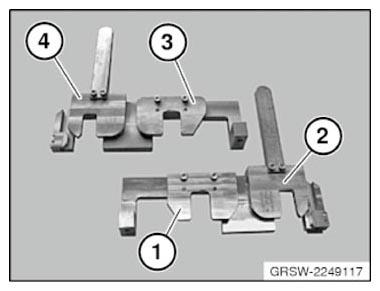

Fig 1: Identifying Special Tool Set (2 249 117)
G10056701Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 144 on intake camshaft.

Position exhaust camshaft with special tool 2 249 159 and attach to special tool 2 249 144 .

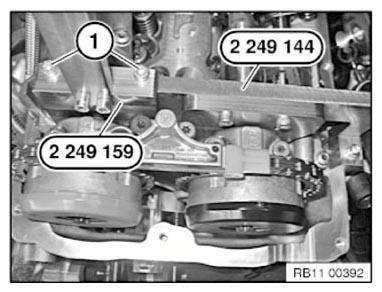

Fig 2: Checking Timing Adjustment - Exhaust Camshaft
G10056702Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Mount special tool 2 249 117 .

Release central bolts (1 and 2) of intake camshaft adjuster and exhaust camshaft adjuster.

Installation note:

Replace central bolts after releasing.

Fig 3: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10056703Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

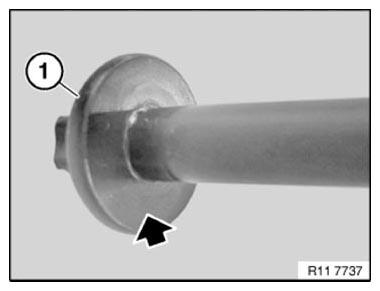

Fig 4: Identifying Central Bolt Contact Surface
G10056704Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1 and 2).

IMPORTANT: Loosen the central bolts (1 and 2) by maximum 40°.

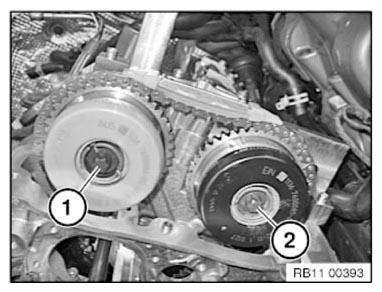

Fig 5: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10056705Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Crank engine back at central bolt through 8°.

Position engine with special tool 11 9 190 in front of special tool 11 8 570 as shown in graphic.

Fig 6: Positioning Special Tools
G10056706Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten the central bolt (1) beginning with the intake camshaft.

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

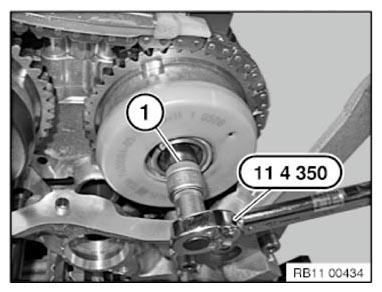

Fig 7: Inserting Central Bolt Of Intake Camshaft
G10056707Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

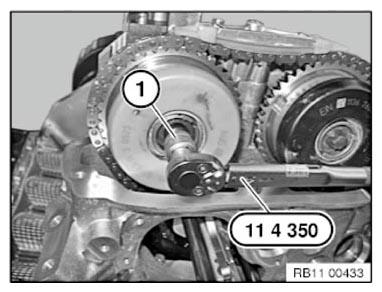

Fig 8: Identifying Connecting Rod Bolts And Crankshaft
G10056708Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 9: Positioning Special Tools
G10056709Courtesy of BMW OF NORTH AMERICA, INC.

Turn the engine at the central bolt further until the special tool 11 9 190 can be positioned in the gear case cover.

The engine is now in the 150° crankshaft position before the TDC firing position of cylinder 1.

Fig 10: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10056710Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten the central bolt (1) beginning with the intake camshaft.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

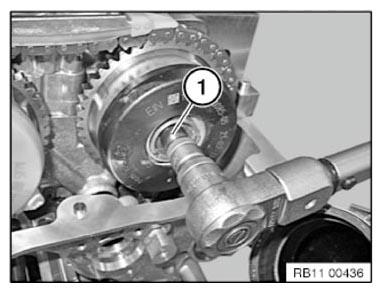

Fig 11: Tightening Intake Camshaft Central Bolt
G10056711Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

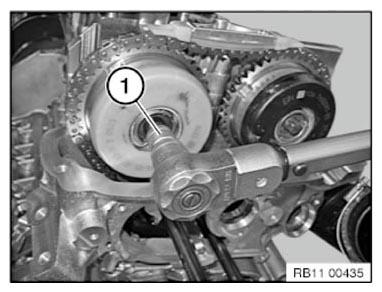

Fig 12: Inserting Exhaust Camshaft Central Bolt
G10056712Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT 90°.

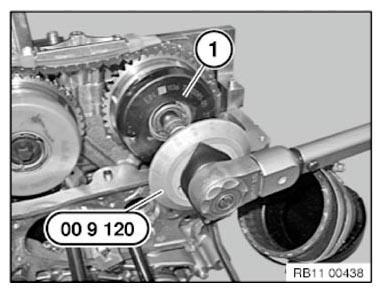

Fig 13: Inserting Central Bolt Of Intake Camshaft Using Special Tool (00 9 120)
G10056713Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Checking the timing: Remove special tool 2 249 117 .

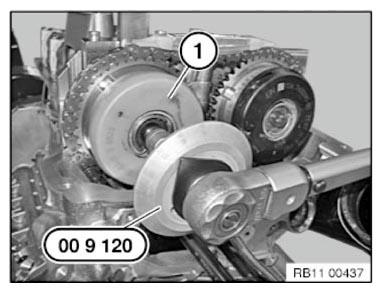

Fig 14: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool (00 9 120)
G10056714Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of engine rotation until engine returns to 150° before cylinder no. 1 firing TDC position.

Secure vibration damper with special tools 11 8 570 and 11 9 190 in the 150° TDC firing position, cylinder 1  .

Fig 15: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10056715Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 249 144 on intake camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 144 rests without a gap on cylinder head.

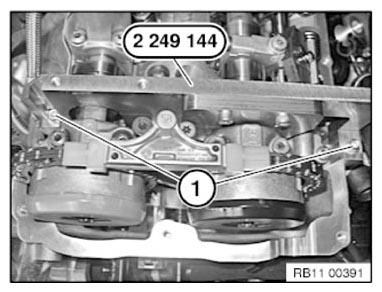

Fig 16: Checking Timing Adjustment - Intake Camshaft
G10056716Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 2 249 159 on the exhaust camshaft and check timing adjustment.

NOTE: Timing is correctly adjusted when special tool 2 249 159 rests without a gap on special tool 2 249 144 .
Fig 17: Checking Timing Adjustment - Exhaust Camshaft
G10056717Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
