11 36 047 Removing and installing/replacing intake and exhaust camshaft adjuster on left side (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

(cylinder bank 5 to 8)

Necessary preliminary tasks:

IMPORTANT: If special tool can not be fitted, hexagon head of relevant camshafts must be counter-supported when releasing central bolt.

Release central bolts (1 and 2) of intake camshaft adjuster and exhaust camshaft adjuster.

Installation note:

Replace central bolts after releasing.

Fig 1: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057508Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Fig 2: Identifying Central Bolt Contact Surface
G10057509Courtesy of BMW OF NORTH AMERICA, INC.

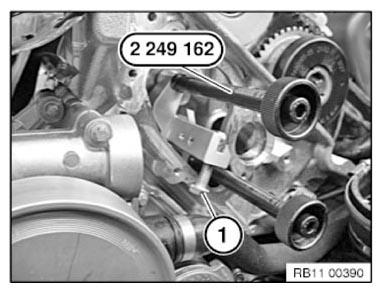

Release screw (1).

Release special tool 2 249 162 at knurled screws and remove.

Fig 3: Mounting Special Tool (2 249 162) And Pretensioning Screw
G10057510Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove upper tensioning rail (2).

NOTE: For better graphic without special tools.

Graphic N63.

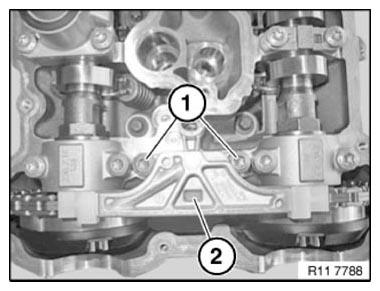

Fig 4: Identifying Upper Tensioning Rail And Screws
G10057511Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (2) of inlet adjustment unit.

Installation note:

Replace central bolts after releasing.

Fig 5: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057512Courtesy of BMW OF NORTH AMERICA, INC.

Detach inlet adjustment unit (1) in direction of arrow from inlet camshaft.

Graphic N63.

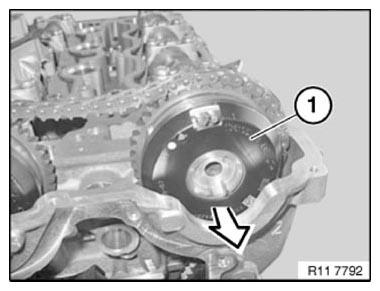

Fig 6: Detaching Inlet Adjustment Unit From Inlet Camshaft
G10057513Courtesy of BMW OF NORTH AMERICA, INC.

Feed out inlet adjustment unit (2) from timing chain (1).

Lift out inlet adjustment unit (2).

Graphic N63.

Fig 7: Identifying Inlet Adjustment Unit And Timing Chain
G10057514Courtesy of BMW OF NORTH AMERICA, INC.

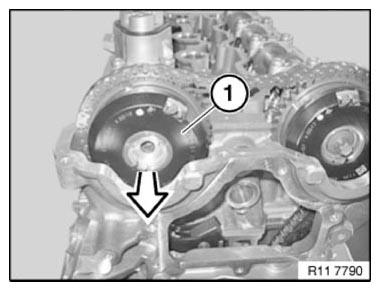

Detach exhaust adjustment unit (1) in direction of arrow from exhaust camshaft.

Graphic N63.

Fig 8: Detaching Exhaust Adjustment Unit From Exhaust Camshaft
G10057515Courtesy of BMW OF NORTH AMERICA, INC.

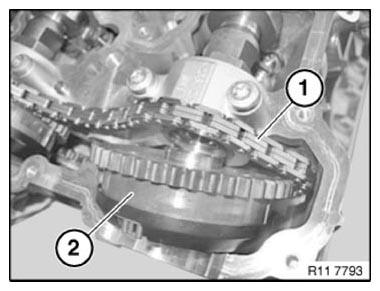

Feed out exhaust adjustment unit (2) from timing chain (1).

Lift out exhaust adjustment unit (2).

Graphic N63.

Fig 9: Identifying Exhaust Adjustment Unit And Timing Chain
G10057516Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:

Intake and exhaust camshaft adjusters are different.

Mixing up the inlet and exhaust adjustment units will cause damage to the engine.

  1. Intake adjuster is marked with {EIN  }.
  2. Exhaust camshaft adjuster is marked with {AUS  }.

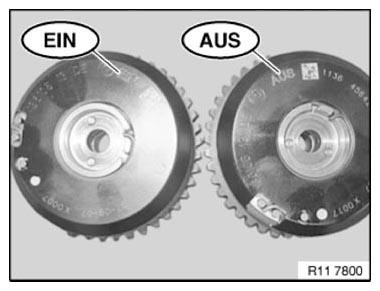

    Fig 10: Locating Identification Marks On Intake And Exhaust Camshaft Adjusters
    G10057517Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Fig 11: Identifying Central Bolt Contact Surface
G10057518Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of adjustment units in relation to timing chain can be freely selected.

Feed adjuster into timing chain and position on camshafts.

Insert central bolts (1 and 2) on adjustment units without gaps.

Release central bolts (1 and 2) by 45  °.

Fig 12: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057519Courtesy of BMW OF NORTH AMERICA, INC.

Fit sliding rail (2) and secure with screws (1).

Tightening torque: 11 31 4AZ .

Graphic N63.

Fig 13: Identifying Sliding Rail And Screws
G10057520Courtesy of BMW OF NORTH AMERICA, INC.

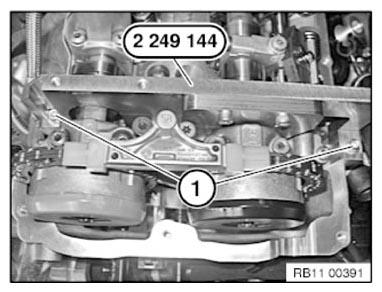

Position special tool 2 249 144 on intake camshaft.

Secure special tool 2 249 144 with bolts (1).

Fig 14: Checking Timing Adjustment - Intake Camshaft
G10057521Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 159 on exhaust camshaft.

Screw special tool 2 249 159 to special tool 2 249 140 .

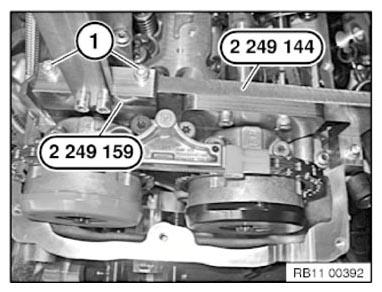

Fig 15: Checking Timing Adjustment - Exhaust Camshaft
G10057522Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 2 249 162 .

Pretension timing chain with special tool 2 249 162 .

Pretension timing chain with special tool 00 9 250 or 00 9 460 to 0.6 Nm  .

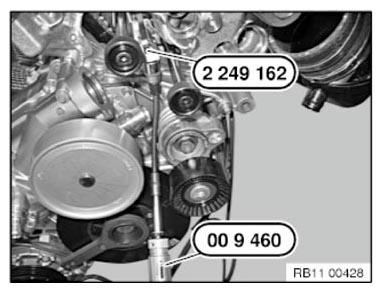

Fig 16: Pretensioning Special Tool (2 249 162)
G10057523Courtesy of BMW OF NORTH AMERICA, INC.

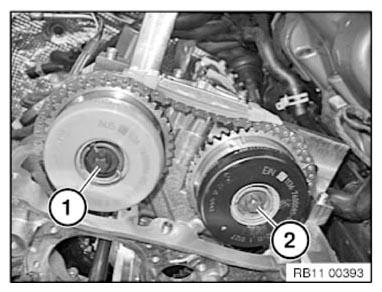

Release central bolts (1 and 2) by 45  °.

Fig 17: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057524Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

IMPORTANT: Crank engine back at central bolt through 45°.
Fig 18: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10057525Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect special tools 11 9 190 from gear case cover.

Rotate crankshaft in direction of engine rotation at central bolt until special tool 11 8 570 comes into contact in front of special tool 11 9 190 .

Fig 19: Positioning Special Tools
G10057526Courtesy of BMW OF NORTH AMERICA, INC.

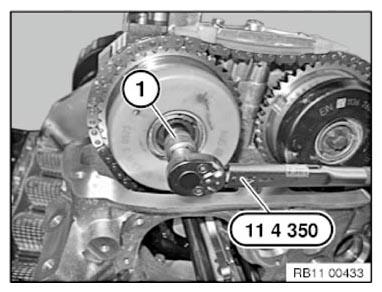

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

Fig 20: Identifying Connecting Rod Bolts And Crankshaft
G10057527Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

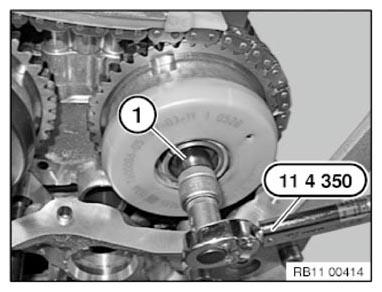

Fig 21: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool 11 4 350
G10057528Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 22: Positioning Special Tools
G10057529Courtesy of BMW OF NORTH AMERICA, INC.

Turn engine at central bolt further until special tool 11 9 190 can be positioned in gear case cover.

The engine is now 150° before TDC firing position cylinder 1.

Fig 23: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10057530Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

Fig 24: Inserting Exhaust Camshaft Central Bolt
G10057531Courtesy of BMW OF NORTH AMERICA, INC.

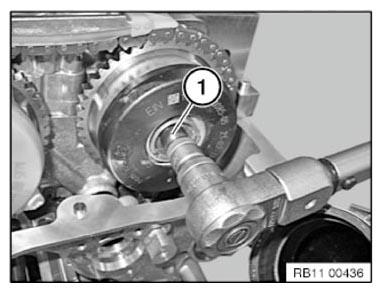

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

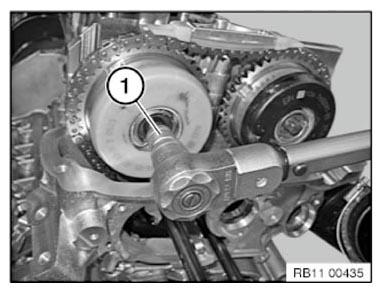

Fig 25: Tightening Intake Camshaft Central Bolt
G10057532Courtesy of BMW OF NORTH AMERICA, INC.

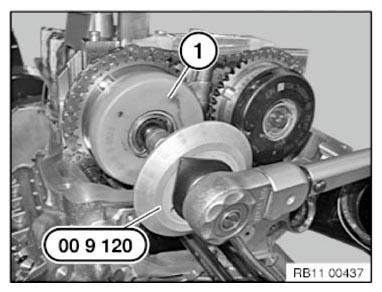

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90  °.

Fig 26: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool (00 9 120)
G10057533Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90  °.

Remove special tool 2 249 117 .

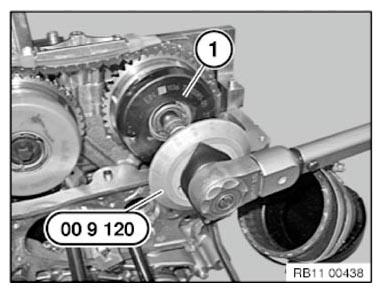

Fig 27: Inserting Central Bolt Of Intake Camshaft Using Special Tool (00 9 120)
G10057534Courtesy of BMW OF NORTH AMERICA, INC.

Check TIMING  again.

Remove all special tools.
