11 12 040 Removing and installing all ignition coils and injector wells (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1).

Tightening torque: 11 12 8AZ .

Fig 1: Identifying Screws
G10055817Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting bushes (1) for damage.

Installation note:

Replace gasket (2).

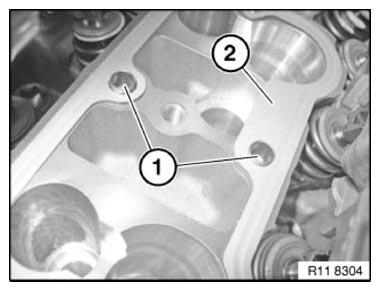

Fig 2: Identifying Fitting Bushes And Gasket
G10055818Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
