11 14 110 Removing and installing lower timing case cover (N63)

Special tools required:

• 11 4 470

Necessary preliminary tasks:

• Remove ENGINE
• Remove both cylinder heads. See REMOVING LEFT CYLINDER HEAD  and REMOVING RIGHT CYLINDER HEAD .
• Remove LOWER OIL SUMP SECTION
• Remove UPPER OIL SUMP SECTION
• Remove alternator BELT TENSIONER
• Remove VIBRATION DAMPER
• Remove COOLANT PUMP
• Remove ALTERNATOR
• Remove A/C COMPRESSOR
• Remove hub for VIBRATION DAMPER

Release screws along lines (1).

Remove timing case cover (2) towards front.

Clean sealing surfaces with special tool 11 4 470 .

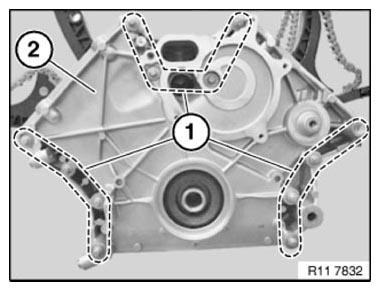

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 14 1AZ .

Remove jump guard (2).

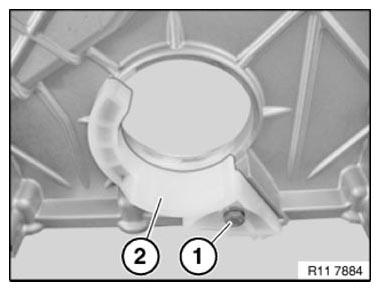

Fig 2: Identifying Jump Guard And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces with special tool 11 4 470 .

Installation note:

Preposition all bolts in timing case cover.

Replace beaded metal gaskets (1, 2 and 3).

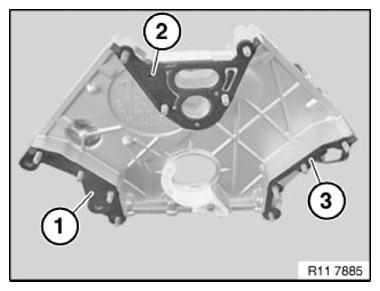

Fig 3: Identifying Beaded Metal Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Fit timing case cover (2).

Initially tighten all bolts to approx. 5 Nm.

Fully tighten all bolts in alternate sequence.

Tightening torque 11 14 2AZ .

Installation note:

Wait for PU material to emerge at sealing joints.

Carefully wipe off  protruding PU material.

Fig 4: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace RADIAL SHAFT SEAL in gear case cover at bottom.

Assemble engine.
