11 13 010 Removing and installing/replacing upper oil sump section (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION .
Lower front axle. See LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) or LOWERING/RAISING FRONT AXLE SUPPORT (ALL-WHEEL DRIVE VEHICLE) .
Remove OIL PUMP
Remove FRONT AXLE DIFFERENTIAL (AWD only).
Remove front output shaft BEARING SUPPORT (AWD only).
Unclip wiring harness on oil sump.

Remove oil filter cover with oil filter (1) with special tool 11 9 240 .

Tightening torque: 11 42 1AZ .

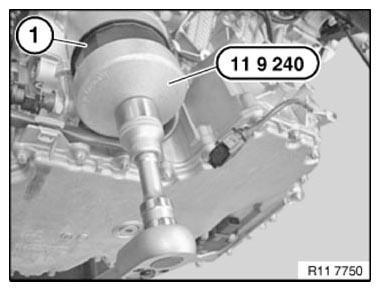

Fig 1: Releasing Oil Filter Cover

G10055982

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1). Remove oil pipes (2) from oil filter housing.

Release holders of supply/return lines on oil sump

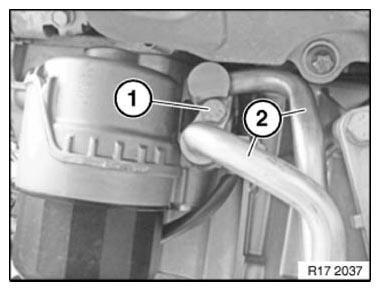

Fig 2: Identifying Screw And Oil Lines

G10055983

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 11 41 1AZ .

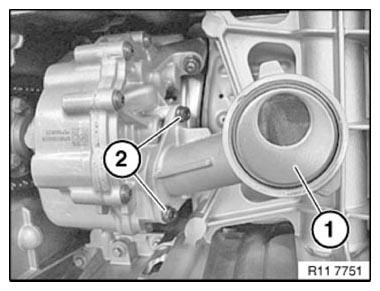

Fig 3: Identifying Screws

G10055984

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts in area of line (1).

Tightening torque 11 13 2AZ .

Release bolts (2) on transmission side 24 00 1AZ .

Remove upper oil sump section (3).

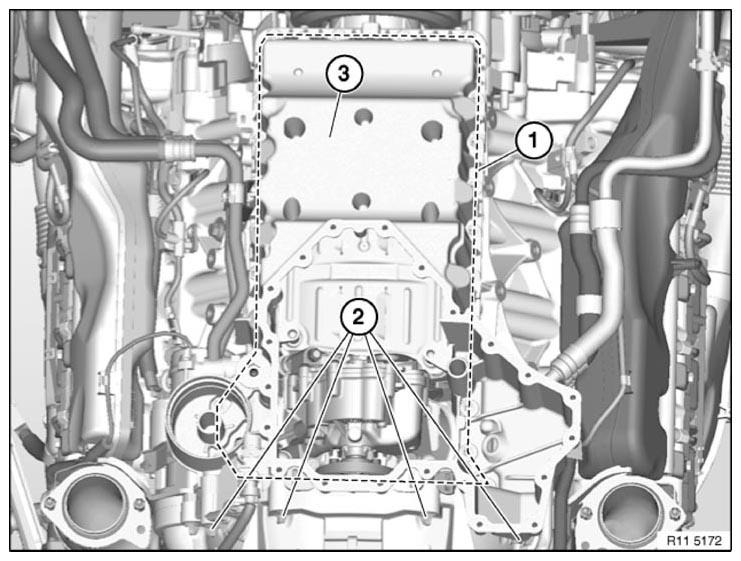

Fig 4: Identifying Upper Oil Sump Section And Bolts

G10055985

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Free sealing surfaces of seal debris and clean.

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Assemble engine.
