11 13 020 Removing and installing/replacing lower oil sump section (N63)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove underbody protection at front and rear. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR ENGINE UNDERCOVER .
- Release OIL DRAIN PLUG and drain engine oil.
- Remove STIFFENING PLATE (AWD only).

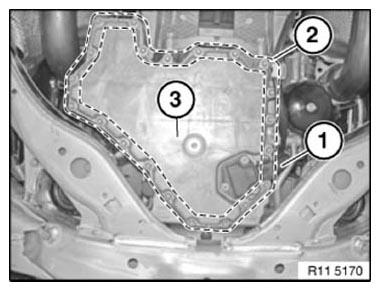

Unlock plug connection (1) on oil level sensor and disconnect.
Release screws (2) along line.
Tightening torque 11 13 3AZ .
Remove lower oil sump section (3).
Installation note:
Clean sealing surfaces.
Replace gasket.
Replace screws.
When replacing lower oil sump section:
Convert oil level sensor.
Replace sealing ring.
NOTE:
Procedure with four-wheel drive.

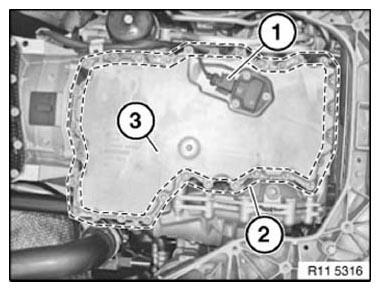

Unlock plug connection (1) on oil level sensor and disconnect.
Release screws (2) along line.
Tightening torque 11 13 3AZ .
Remove lower oil sump section (3).
Installation note:
Clean sealing surfaces.
Replace gasket.
Replace screws.
When replacing lower oil sump section:
Convert oil level sensor.
Replace sealing ring.
