11 12 719 Surface grinding cylinder head lower face (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove cylinder head. See REMOVING LEFT CYLINDER HEAD or REMOVING RIGHT CYLINDER HEAD .

Cylinder head disassembled:

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Maximum deviation from flatness: longitudinal 0.10 mm.

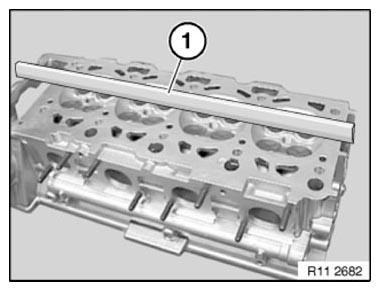

Fig 1: Checking Evenness Of Cylinder Head Lower Face (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum deviation from flatness: transversal 0.05 mm.

Machining limit

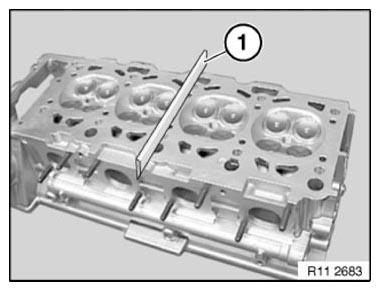

Fig 2: Checking Evenness Of Cylinder Head Lower Face (Transversal)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A cylinder head gasket (+REP) 0.3 mm thicker than usual can be obtained for machined (resurfaced) cylinder heads.

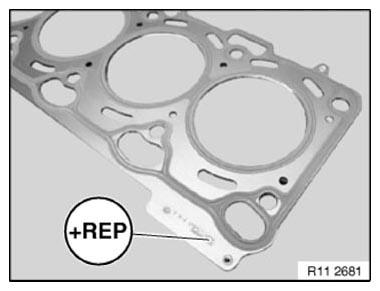

Fig 3: Identifying Repair Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.
