11 15 140 Replace oil separator (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cylinder head cover. See REMOVING LEFT CYLINDER HEAD COVER or REMOVING RIGHT CYLINDER HEAD COVER .

Removal:

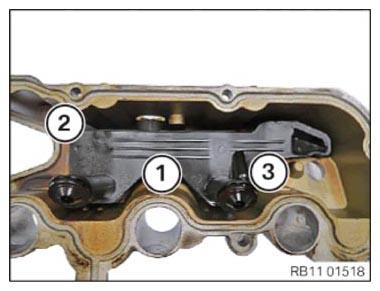

Fig 1: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in the sequence 3 - 1 .

Remove oil separator.

Illustration: Cylinders 5 to 8.

Installation:

IMPORTANT: Risk of damage!
All engine oil and contamination must be removed from all threaded holes.
Compliance with torque specifications for screw connections is mandatory!

Fig 2: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install the oil separator with duct.

Parts: Replace screws.

Tighten screws in the sequence 1 - 3 .

Tightening torque 11 12 11AZ .

Required follow-up work:

Install cylinder head cover
