11 12 005 Removing and installing/sealing left cylinder head cover (N63)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove ACOUSTIC COVER
- Disconnect NEGATIVE BATTERY TERMINAL
- Remove left CHARGE AIR COOLER
- Remove INTAKE FILTER HOUSING
- Remove expansion tanks. See REMOVING COOLANT EXPANSION TANK and REMOVING INTERCOOLER EXPANSION TANK .
- Remove coolant valve for heater feed line
- Disconnect FUEL FEED LINE
- Detach wiring harness for injectors and lay to one side
- Remove IGNITION COILS , cylinders 5-8
- Remove INJECTORS , cylinders 5-8
- Remove HIGH-PRESSURE PUMP

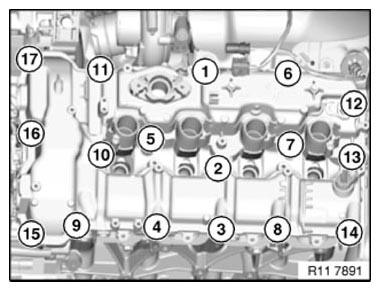

Release bolts in sequence (17 to 1).
Remove cylinder head cover.

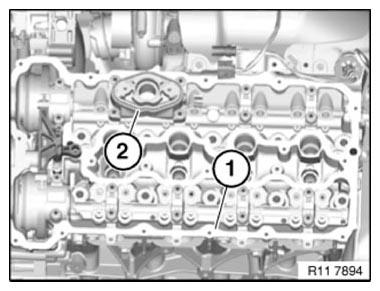

Clean sealing surface (1) with special tool 11 4 470 .
Installation note:
Replace seal (2).
Installation note:

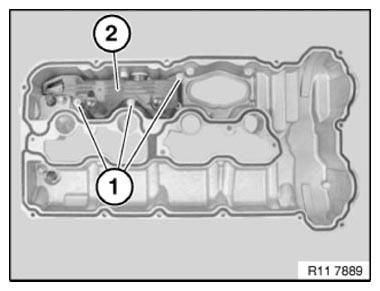

Renew profile seal of cylinder head cover.
Installation note:

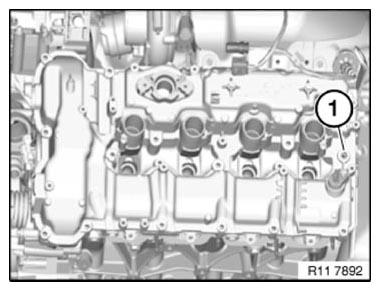

It is important to join screw (1) for exact positioning of the camshaft sensors.
Fit cylinder head cover.
Position screw (1).
Release screw (1) by 90°.
Secure cylinder head cover in sequence (1 to 17) in two work steps.
Tightening torque 11 12 3AZ .
Assemble engine.
