11 12 006 Removing and installing/sealing right cylinder head cover (N63)

Special tools required:

• 11 4 470

Necessary preliminary tasks:

• Remove ACOUSTIC COVER
• Disconnect NEGATIVE BATTERY TERMINAL
• Release battery positive terminal
• Drain COOLANT
• Remove right INTERCOOLER
• Remove INTAKE FILTER HOUSING
• Disconnect FUEL DELIVERY LINE
• Detach wiring harness for injectors and lay to one side
• Remove IGNITION COILS , cylinders 1-4
• Remove INJECTORS , cylinders 1-4
• Remove HIGH PRESSURE PUMP

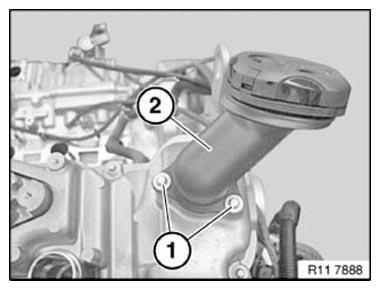

Release screws (1).

Tightening torque 11 12 9AZ .

Remove oil filler neck (2).

Installation note:

Replace sealing ring.

Fig 1: Identifying Oil Filler Neck And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

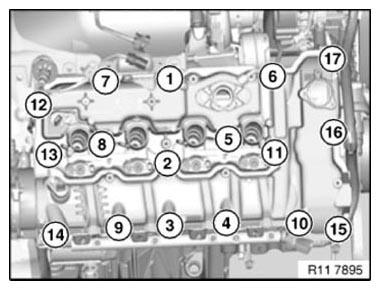

Release bolts in sequence (17 to 1).

Remove cylinder head cover.

Fig 2: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

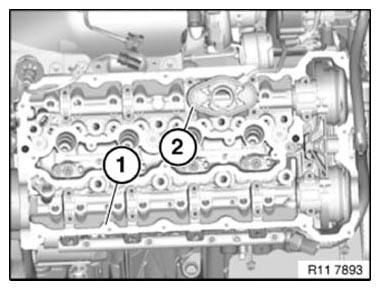

Clean sealing surface (1) with special tool 11 4 470 .

Installation note:

Replace seal (2).

Fig 3: Identifying Sealing Surface And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

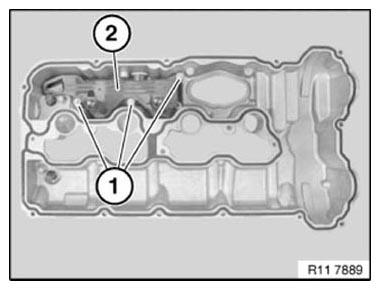

Renew profile seal of cylinder head cover.

Fig 4: Identifying Profile Seal Of Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

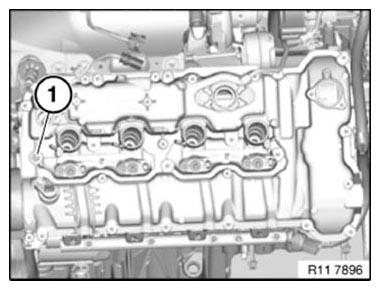

It is important to join screw (1) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screw (1).

Release screw (1) by 90°.

Fig 5: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cylinder head cover in sequence (1 to 17) in two work steps.

Tightening torque 11 12 3AZ .

Fig 6: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

FILL AND VENT COOLING SYSTEM
