11 34 560 Replacing all valve stem seals (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

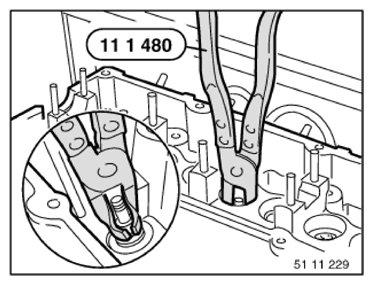

Firmly press special tool 11 1 480 onto old valve stem seals.

Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480 .

Installation:

Insert all VALVES .

Fig 1: Pressing Special Tool 11 1 480 Onto Valve Stem Seals

Courtesy of BMW OF NORTH AMERICA, INC.

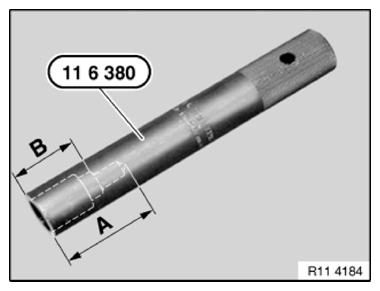

NOTE: For use on the N55 engine, special tool 11 6 380 must be remachined according to the picture with a 10 mm dia. drill bit to a depth of B = approx. 23 mm.
This modification has already been taken into account for reordering.

Fig 2: Identifying Special Tool 11 6 380 Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Different diameters at valve stem.
All valve stem seals are color-coded.

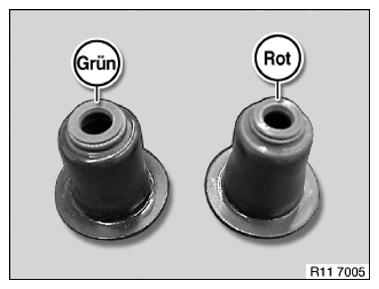

For 5 mm dia. valves, the valve stem seal is marked red or brown.

For 6 mm dia. valves, the valve stem seal is marked green.

Fig 3: Identifying Valve Stem

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit the assembly sleeves (plastic sleeves) contained in the delivery specification on the valve stem end.

Lubricate assembly sleeve.

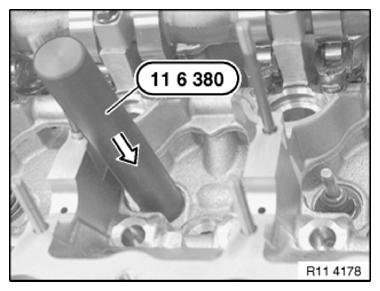

Press on valve stem seal by hand with special tool 11 6 380 as far as it will go.

NOTE: Illustrations shows N42 engine.

Fig 4: Pressing Valve Stem Seal Using Special Tool 11 6 380

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
