11 34 715 Replacing all valve springs (N55)

Special tools required:

• 11 4 481
• 11 4 482
• 11 8 841
• 11 8 842
• 11 9 000
• 11 9 007

Necessary preliminary work:

• Remove CYLINDER HEAD .
• Remove EXHAUST CAMSHAFT .
• Remove INTERMEDIATE LEVER .
• Remove INTAKE CAMSHAFT .
• Remove ROCKER ARM .

Place cylinder head on special tool 11 9 000 .

Align special tool 11 9 007 on particular combustion chamber.

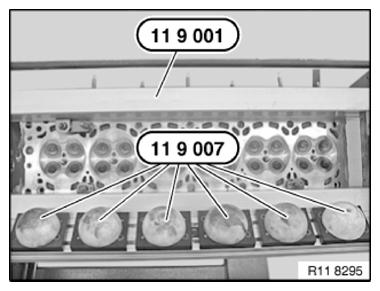

Fig 1: Placing Cylinder Head On Special Tool 11 9 000

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 007 on cylinder head.

Push locks (1 and 2) toward inside and preload via eccentric shaft.

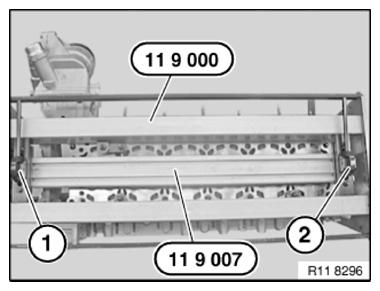

Fig 2: Positioning Special Tool 11 9 007 On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Press down intake valve  with special tool 11 8 841.

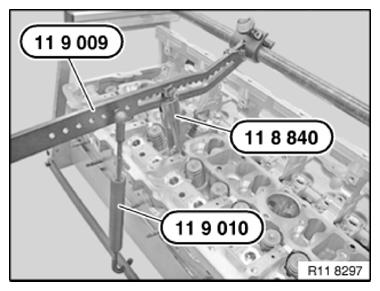

Fig 3: Pressing Down Intake Valve Using Special Tool 11 8 841

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 481 .

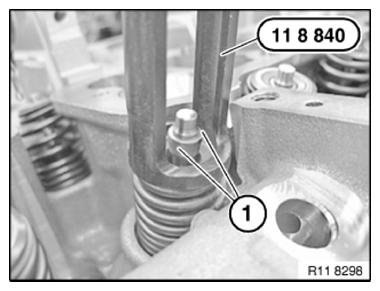

Fig 4: Removing Valve Key

Courtesy of BMW OF NORTH AMERICA, INC.

Press down discharge valve  with special tool 11 8 842.

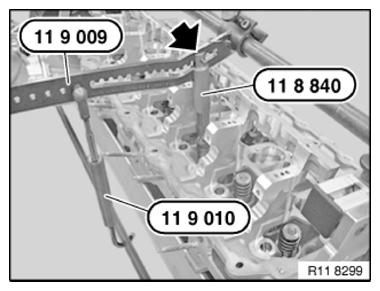

Fig 5: Pressing Down Discharge Valve Using Special Tool 11 8 842

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 482 .

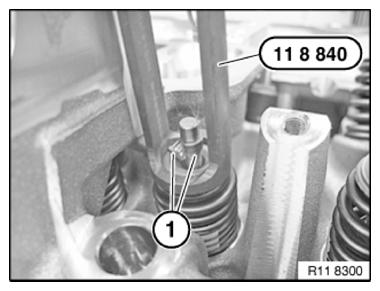

Fig 6: Removing Valve Key

Courtesy of BMW OF NORTH AMERICA, INC.

Valve springs are marked in color (1).

Colors for intake valves:

• Green/blue
• Yellow/Blue
  Fig 7: Identifying Valve Springs Color Mark

  Courtesy of BMW OF NORTH AMERICA, INC.

Colors for discharge valves:

• Green/white
• Yellow/white

Install the valve spring so that the larger diameter points to the lower spring cup.

Arrangement:

1. Valve
2. Valve stem seal with lower spring cup
3. Valve spring
4. Upper spring cup
5. Valve keys
   Fig 8: Identifying Valve Stem Seal, Valve Spring, Upper Spring Cup, Valve Keys

   Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
