11 31 051 Replacing timing chain (N55) up to March 2012

Special tools required:

• 11 0 300
• 11 4 280
• 11 8 180
• 11 8 660
• 11 9 260
• 11 4 120

Necessary preliminary tasks:

• Remove CYLINDER HEAD COVER .
• Remove all SPARK PLUGS .
• Remove CRANKSHAFT RADIAL SEAL at front.
• Remove TENSIONING DEVICE for drive belt.
• Remove VIBRATION DAMPER .

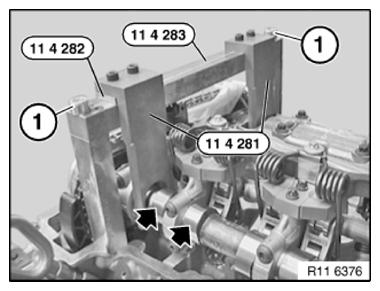

• Check TIMING .
• Remove SEALING COVER for vacuum pump.

Engine removed:

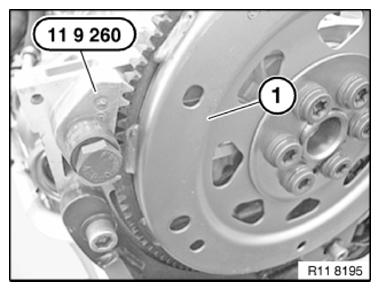

Block crankshaft with special tool 11 9 260 .

Fig 1: Locking Flywheel Using Special Tool 11 9 260

Courtesy of BMW OF NORTH AMERICA, INC.

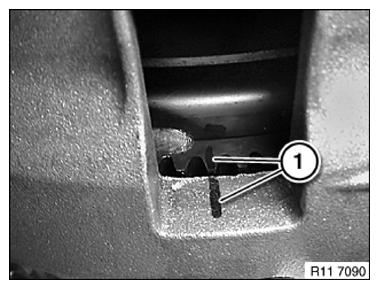

Mark position of crankshaft using a colored mark (1).

This will make future insertion of special tool 11 0 300 easier.

Fig 2: Marking Position Of Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft With Special Tool (Vehicles With Automatic Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual gearbox:

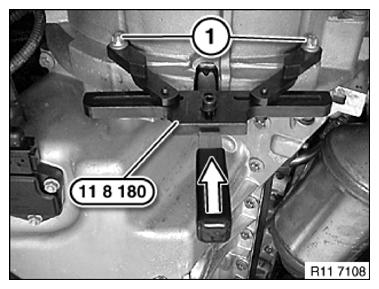

Attach special tool 11 8 180 to manual transmission with existing transmission bolts (1).

Block crankshaft in direction of arrow with special tool.

Fig 4: Attaching Special Tool 11 8 180 To Manual Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

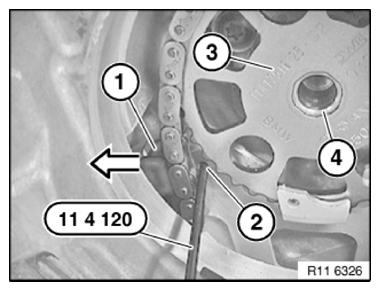

Press timing chain with chain tensioner (1) in direction of arrow.

Disconnect timing chain with special tool 11 4 120 .

Fig 5: Disconnecting Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

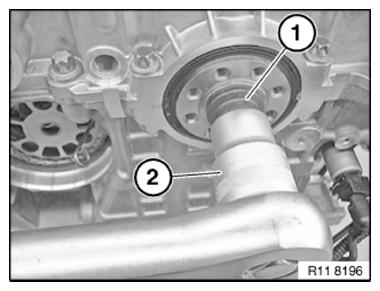

Release central bolt (1) with 3/4-inch tool (2).

Tightening torque 11 21 1AZ .

Fig 6: Removing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CHAIN TENSIONER .

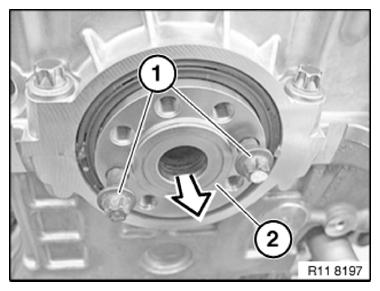

Screw in vibration absorber screws (1).

Move hub (2) on crankshaft forward in direction of arrow to remove.

Fig 7: Moving Hub On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

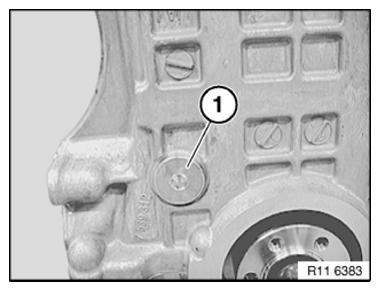

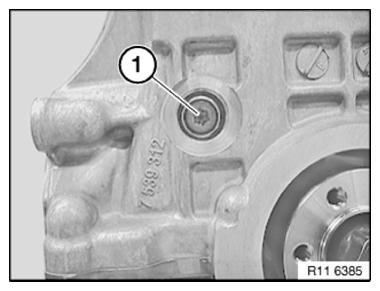

Open screw plug (1).

Tightening torque 11 31 8AZ .

Fig 8: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

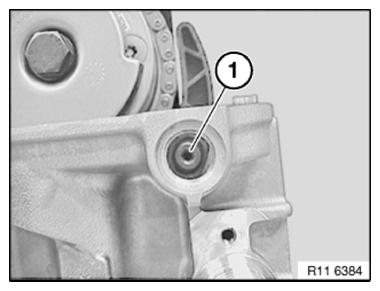

Open screw plug (1).

Tightening torque 11 11 7AZ .

Installation note:

Replace aluminum screws.

Fig 9: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

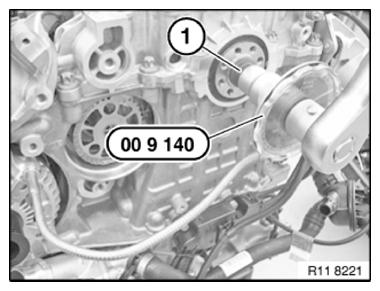

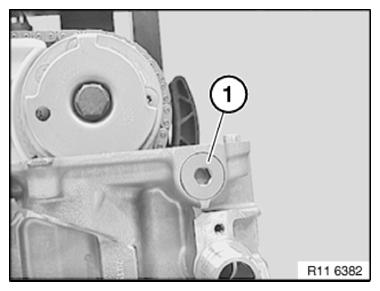

Release bearing journal (1) from timing chain module on cylinder head.

Tightening torque 11 31 6AZ .

Fig 10: Identifying Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Fig 11: Releasing Central Bolts On Intake And Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1) from timing chain module on crankcase.

Tightening torque 11 31 5AZ .

Fig 12: Releasing Bearing Journal From Timing Chain Module On Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

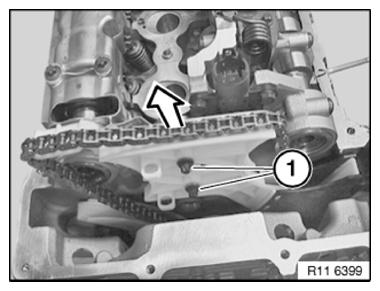

Release bolts (1) from timing chain module on cylinder head.

Tightening torque 11 31 4AZ .

Remove chain module with timing chain and camshaft sprocket upwards in direction of arrow.

Fig 13: Removing Chain Module with Timing Chain And Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Locating Collar On Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

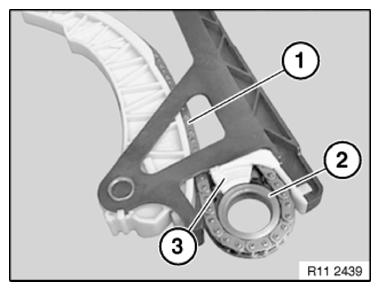

Pull timing chain (1) upwards until camshaft sprocket (2) engages chain guide (3).

Install timing chain (1) and sprocket (2) in this position.

Installation note:

Always hold timing chain (1) under tension. Timing chain (1) may jam on chain guide (3).

Fig 15: Installing Timing Chain And Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) with hub for crankshaft.

Tighten down central bolt (1).

Tightening torque 11 21 1AZ .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Install CHAIN TENSIONER .

Fig 16: Tightening Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine twice.

Check TIMING .

If necessary, adjust VALVE TIMING .

Replace front CRANKSHAFT SEAL .

Assemble engine.
