11 31 005 Checking camshaft timing (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: When the engine is shut down, the intake and exhaust camshaft adjusters are normally locked in their initial setting. In order to avoid incorrect timing adjustment, it is essential to check the locking of the camshaft adjuster and if necessary perform locking by rotating the camshafts.

IMPORTANT: For the positioning of the special tool 11 4 281 on the mounting flats of the intake camshaft, a collision with the cylinder throttle return spring 1 can occur.
Special tool 11 4 281 reconditions at following description.

Check for freedom of movement of throttle return spring at intermediate lever cylinder 1.

Recondition special tool 11 4 281 .

Recondition chamfer on special tool 11 4 281 as shown in area that is 50 mm long and 8.5 mm wide.

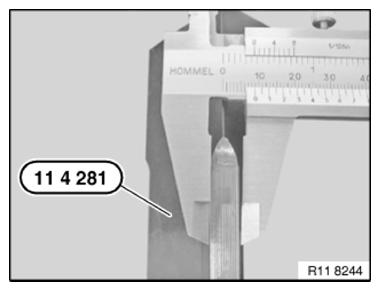

Fig 1: Checking Throttle Return Spring Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

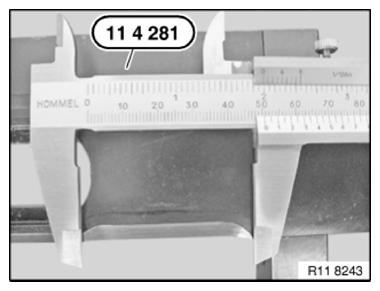

Rework chamfer to 8.5 mm on special tool 11 4 281 (see Fig 2).

Fig 2: Identifying Special Tool (11 4 281)

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove fastener (1) in direction of arrow.

Installation note:

Install fastener (1) with bore facing outwards.

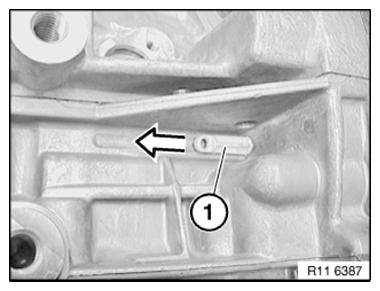

Fig 3: Removing Fastener In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate crankshaft at central bolt into TDC setting.

Slide special tool 11 0 300 in direction of arrow into dowel hole and secure crankshaft.

IMPORTANT: If the flywheel is secured in the correct dowel hole with special tool 11 0 300 , the engine can no longer be moved at the central bolt.

Fig 4: Securing Flywheel With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Vehicles with automatic transmission can only be secured to the specified position on flywheel (1) (see arrow in illustration).

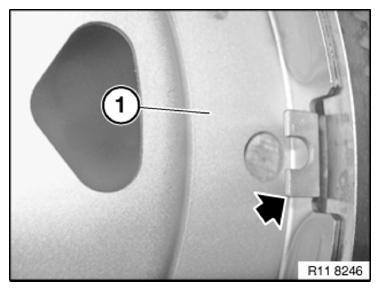

Fig 5: Locating Flywheel Position

Courtesy of BMW OF NORTH AMERICA, INC.

With 1st cylinder in TDC firing position, cams of intake camshaft (1) point upward at an angle.

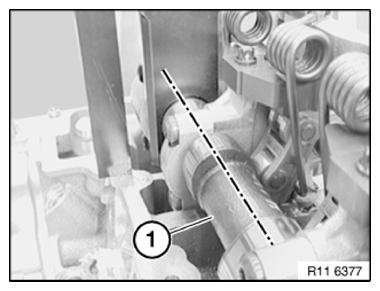

Fig 6: Identifying Position Of Intake Camshaft With Cylinder 1 At TDC

Courtesy of BMW OF NORTH AMERICA, INC.

With 1st cylinder in TDC firing position, cams of the exhaust camshaft (1) point upwards at an angle.

Fig 7: Identifying Position Of Exhaust Camshaft With Cylinder 1 At TDC

Courtesy of BMW OF NORTH AMERICA, INC.

The timings are correct when part numbers or read code (1) on intake and exhaust camshafts point towards top.

Fig 8: Identifying Part Numbers On Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 285 with bolts (1) to cylinder head.

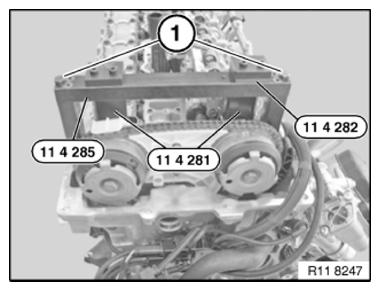

Fig 9: Fitting Special Tools To Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Fit special tool 11 4 282 underneath on side of intake camshaft.

Place reworked special tool 11 4 281 on intake camshaft.

Place special tool 11 4 281 on exhaust camshaft.

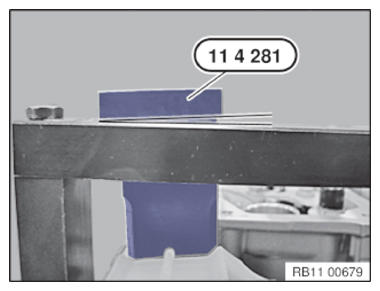

The exhaust camshaft timing is correct when special tool 11 4 281 is slightly in contact to intake side.

Fig 10: Checking Exhaust Camshaft Timing Using Special Tool (11 4 281)

Courtesy of BMW OF NORTH AMERICA, INC.

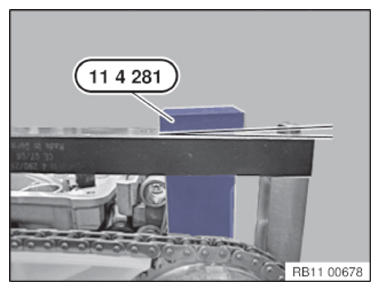

The intake camshaft timing is correct when special tool 11 4 281 is slightly in contact to intake side.

Fig 11: Checking Intake Camshaft Timing Using Special Tool (11 4 281)

Courtesy of BMW OF NORTH AMERICA, INC.

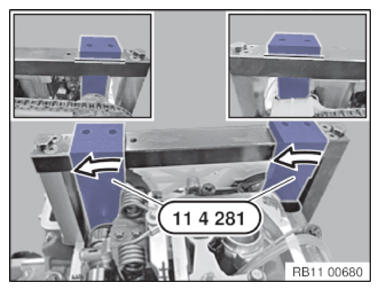

Twist special tools 11 4 281 by hand in direction of arrow up to limit position.

Both gauges must lie flat on special tool 11 4 285 .

Fig 12: Twisting Special Tools (11 4 281) Up To Limit Position

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust VALVE TIMING .

Assemble engine.
