11 36 046 Removing and installing or replacing intake and exhaust camshaft adjusters (N55)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER
Check TIMING

IMPORTANT: Only use special tool 11 4 280 to loosen central bolts (1 and 2) of Vanos unit.
Modify special tool 11 4 280 for N55 engine.

Release central bolts (1 and 2).

Fig 1: Identifying Vanos Unit Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (1).

Tightening torque 11 31 7AZ .

IMPORTANT: Have a cleaning cloth ready. A small quantity of engine oil will emerge after the screw connection has been released.
Make sure no engine oil runs onto belt drive.

Installation note:

Replace sealing ring.

Fig 2: Identifying Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lift timing chain (1) and remove exhaust camshaft adjuster (2) from exhaust camshaft.

Slightly tilt exhaust camshaft adjuster (2) and remove upward.

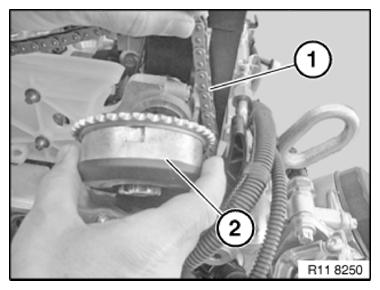

Fig 3: Removing Exhaust Camshaft Adjuster From Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lift timing chain (1) and remove intake adjuster (2) from intake camshaft.

Slightly tilt intake adjuster (2) and remove upward.

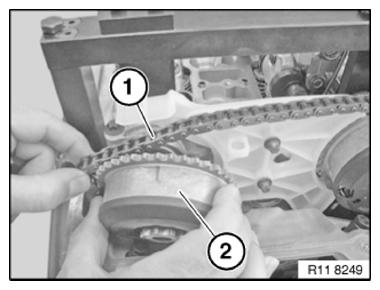

Fig 4: Removing Intake Adjuster From Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up the intake and exhaust camshaft adjusters.
Danger of engine damage!

Intake and exhaust camshaft adjusters are different.

VANOS is marked with AUS/EX for the exhaust camshaft.

VANOS is marked with EIN/IN for the intake camshaft.

Sensor gears can be fitted alternatively.

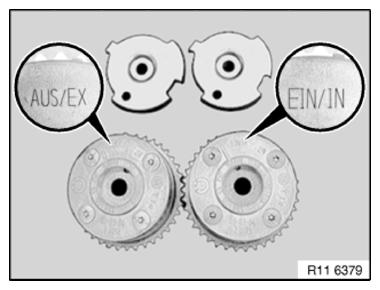

Fig 5: Identifying Intake And Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace central bolts.

Place intake adjuster onto intake camshaft.

Place exhaust camshaft adjuster onto exhaust camshaft.

Installation position of intake and exhaust camshaft adjusters can be freely selected.

Insert central bolts (1) until stop.

Release central bolts (1) again by a 90° turn.

Fig 6: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect assembly possible!

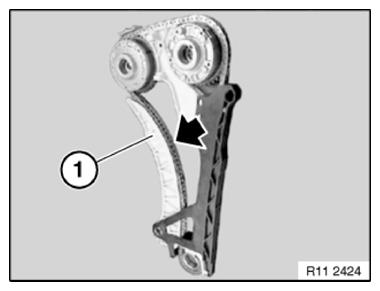

Press tensioning rail (1) by hand against guide rail and make sure timing chain is guided in tensioning rail (1).

NOTE: Schematic representation of removed timing chain module.

Fig 7: Locating Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Turn sensor gears (2) in direction of arrow until retaining pins (1) on special tool 11 4 290 match up.

11 4 290 Slide on special tool in direction of arrow.

Fig 8: Turning Sensor Gears

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 4 280 must be mounted for fastening central bolts

Use bolts to fasten special tool 11 4 290 .

11 9 340 Screw special tool into cylinder head.

Fig 9: Screwing Special Tool Into Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension timing chain with special tool 11 9 340 , 00 9 250, see 00 9 4600, 6 Nm

Fig 10: Installing Timing Chain Using Special Tool 11 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 00 9 120 to tighten central bolts of intake adjuster.

Tightening torque 11 36 1AZ .

Fig 11: Tightening Central Bolts Of Intake Adjuster Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 00 9 120 to tighten central bolts of exhaust camshaft adjuster.

Tightening torque 11 36 1AZ .

Fig 12: Tightening Central Bolts Of Exhaust Camshaft Adjuster Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Rev engine on the central bolt twice in the direction of engine rotation and verify TIMING .

Assemble engine.
