11 15 140 Replace oil separator (N63O0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cylinder head cover. See 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N63) and 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N63) .

Removal:

Release screws in the sequence 3 - 1 .

Remove oil separator.

Illustration: Cylinders 5 to 8.

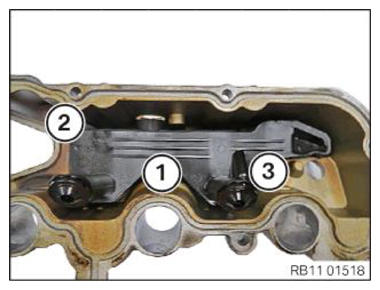

Fig 1: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Risk of damage!
All engine oil and contamination must be removed from all threaded holes.
Compliance with torque specifications for screw connections is mandatory!

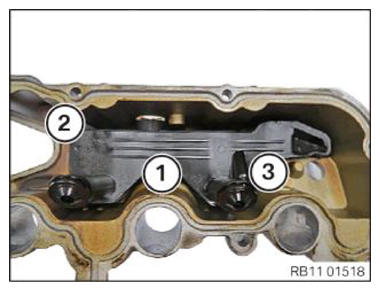

Fig 2: Oil Separator Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install the oil separator with duct.

Parts: Replace screws.

Tighten screws in the sequence 1 - 3 .

Tightening torque 11 12 11AZ .

Required follow-up work:

Install cylinder head cover
