11 12 005 Removing and installing/sealing left cylinder head cover (N63)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove ACOUSTIC COVER
- Disconnect NEGATIVE BATTERY TERMINAL
- Remove left CHARGE AIR COOLER
- Remove INTAKE FILTER HOUSING
- Remove expansion tank(s) . See 17 11 100 REMOVING AND INSTALLING/RENEWING COOLANT EXPANSION TANK (N63) and 17 13 020 REMOVING AND INSTALLING/REPLACING INTERCOOLER EXPANSION TANK (N63) .
- Remove coolant pipe from cylinder head cover (E71 only)
- Remove coolant valve for heater feed line
- Disconnect FUEL FEED LINE
- Detach wiring harness for injectors and lay to one side
- Remove IGNITION COILS , cylinders 5-8
- Remove INJECTORS , cylinders 5-8
- Remove HIGH-PRESSURE PUMP

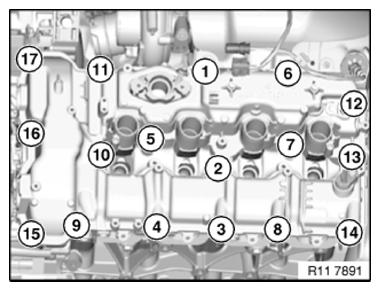

Release bolts in sequence (17 to 1).
Remove cylinder head cover.

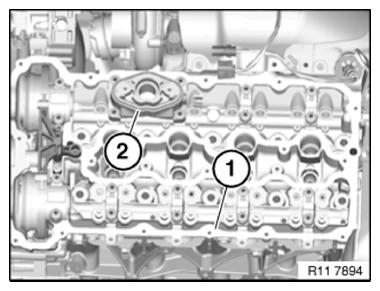

Clean sealing surface (1) with special tool 11 4 470 .
Installation note:
Replace seal (2).
Installation note:

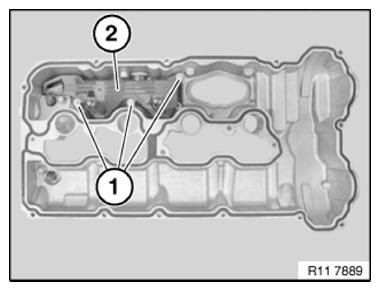

Renew profile seal of cylinder head cover.
Installation note:

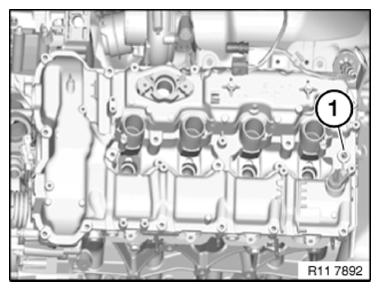

It is important to join screw (1) for exact positioning of the camshaft sensors.
Fit cylinder head cover.
Position screw (1).
Release screw (1) by 90°.
Secure cylinder head cover in sequence (1 to 17) in two work steps.
Tightening torque 11 12 3AZ .
Assemble engine.
