51 22 126 Removing and installing/replacing carrier for outside door handle on left or right rear door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTSIDE HANDLE ON REAR DOOR .
Disconnect BOWDEN CABLE FROM DOOR LOCK .
If necessary, remove SIDE IMPACT PROTECTION IN REAR DOOR .

NOTE:

Version with Comfort Access/CA:

CA sensor (2) must not be damaged.

Unlock catches (3) on carrier (1).

Press carrier (1) behind door outer skin (4).

Fig 1: Installing Carrier Behind Door Outer Skin

G00460815

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection on CA module.

Pull carrier (3) towards rear/top until screw (1) of sheet metal slot (2) is free.

Remove carrier (3) for outside door handle.

Fig 2: Removing Carrier For Outside Door Handle

G03261557

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on carrier (3) must not be damaged.

IMPORTANT:

Water drainage channel (2) must not be fouled/clogged.

Replacement:

If necessary, remove BOWDEN CABLE FOR OUTSIDE DOOR HANDLE .

Version with Comfort Access/CA:

Carry out PROGRAMMING/ CODING

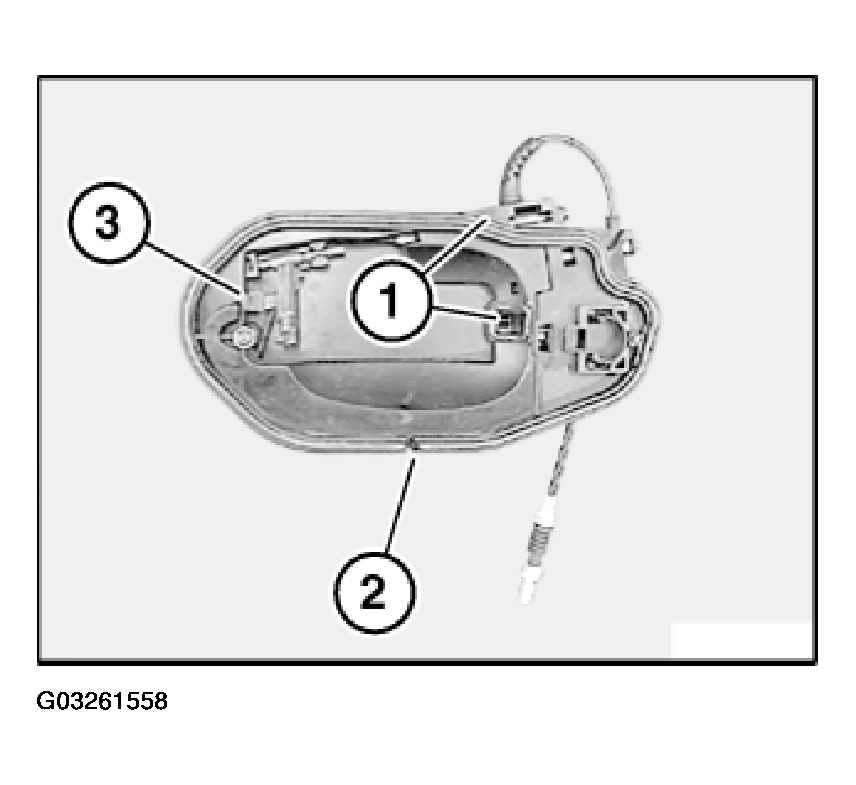

Fig 3: Removing Bowden Cable For Outside Door Handle

G03261558

Courtesy of BMW OF NORTH AMERICA, INC.
