51 22... Removing and installing/replacing side impact protection in left or right rear door
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ACOUSTIC INSULATION .
Security version:
Side impact protection cannot be removed

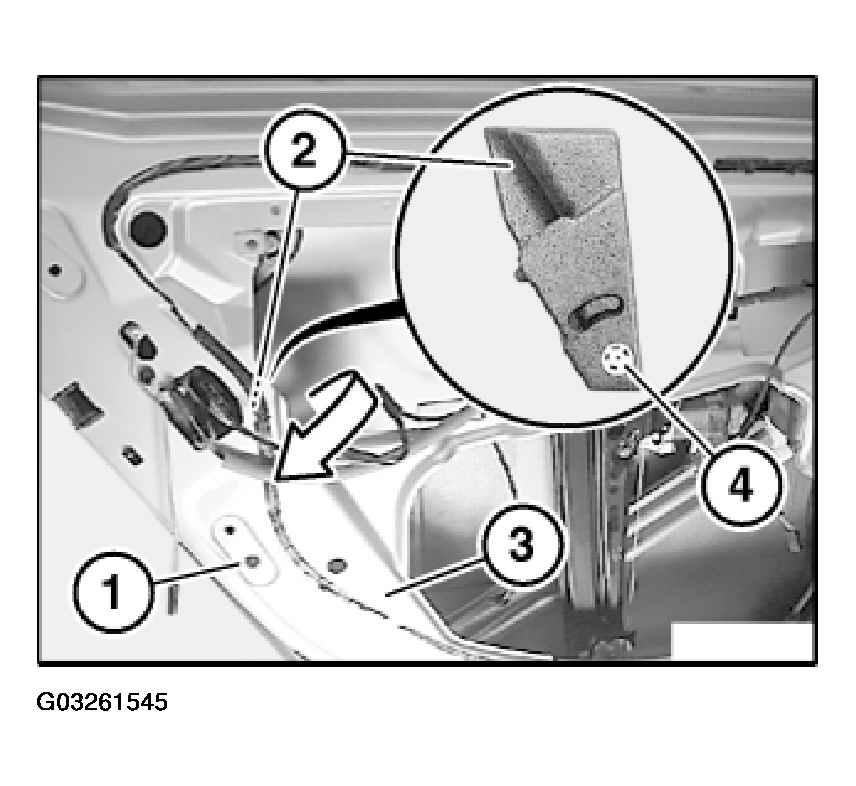

Version with crashpad up to 03/2004:
Release screw (1) and feed crashpad (2) in direction of arrow out of inner door plate (3).
Installation:
Plug-in nut (4) on crashpad (2) must not be damaged.

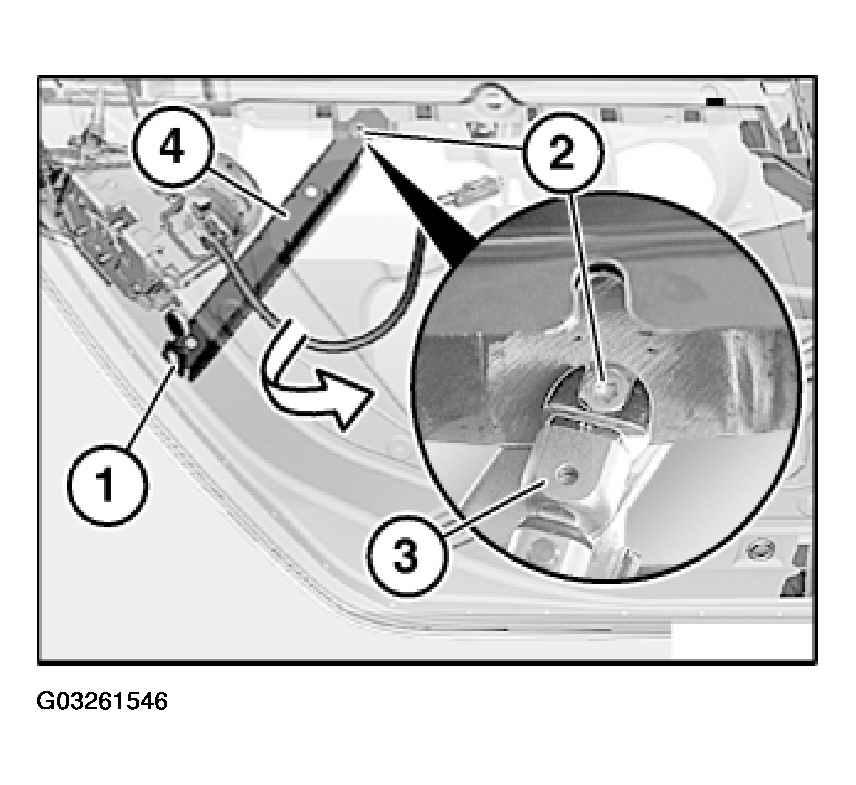

Version with door reinforcement up to 04/2004:
If necessary, release cable holder on door reinforcement (4).
Release screw (1).
Slacken screw (2) with open-end wrench (3) (do not release fully).
Installation:
Tightening torque: see 9AZ in 51 22 REAR DOOR LOCKS
Feed out side impact protection (4) downwards and remove.
