51 42 001 Replacing left or right rear door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove rear DOOR TRIM PANEL

Following parts must be fitted on new door trim panel (if necessary as new part):

Depending on version:

ROLLER SUNBLIND
FOOTWELL LIGHT
LED for door opener
Tweeter with holder (described below)

Version with tweeter:

Aperture for tweeter must be sawn out.

IMPORTANT: Risk of damage!
Saw only through carrier material (2) and not through covering (3).
Cut through covering (3) with knife.

Saw out aperture at mark (1) with 50 mm dia. jigsaw.

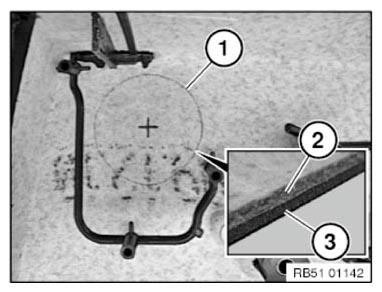

Fig 1: Door Trim Panel Aperture Mark

G10097401

Courtesy of BMW OF NORTH AMERICA, INC.

Fit holder (1) and secure with lock washers (2).

Saw off all pins (3) to dimension (A).

Dimension (A) = 2 mm

Mount tweeter cover from outside.

Install TWEETER .

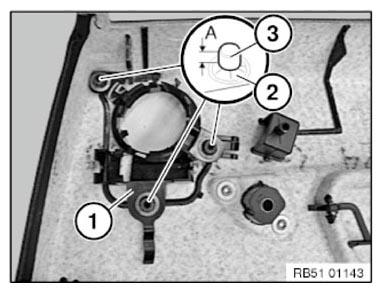

Fig 2: Tweeter Pins Dimension, Holder And Washers

G10097402

Courtesy of BMW OF NORTH AMERICA, INC.
