51 16 405 Removing and installing/replacing roller sunblind on side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the surfaces are not scratched or damaged.

Necessary preliminary work:

Remove REAR DOOR TRIM PANEL

NOTE: Roller sunblind is welded to door trim panel only on initial installation. Roller sunblind is screw-connected on second installation. If applicable, release screws instead of welding spots.

Drill out welding spots (1).

Remove roller sunblind (2).

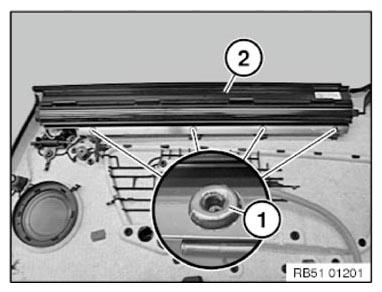

Fig 1: Roller Sunblind Welding Spots

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Completely remove welding pins (1).

Attach sheet metal nuts (2).

Insert roller sunblind in door trim panel and secure with screws and washers.

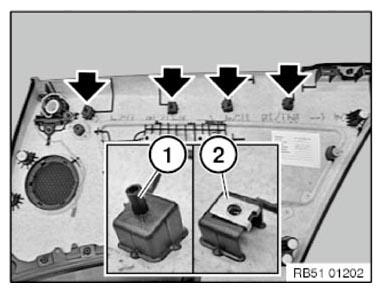

Fig 2: Welding Pins And Sheet Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
