51 47 810 Replace one holder for adaptive mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 72 1 200
Necessary preliminary work:
- Remove luggage compartment wheel arch panels . See 51 47 152 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or 51 47 162 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .
Lever out expanding rivet (1).
Release oddments tray (3) in areas (2) in direction of arrow and remove.
Release plastic nuts (1) and remove facing (2).

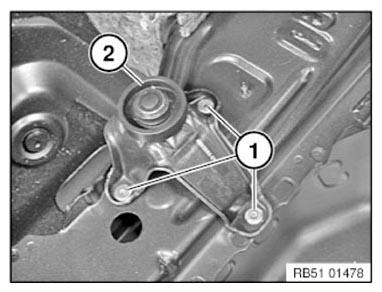

Drill out rivet plate (1) down to rivet shank with a 10 mm twist drill bit.
Take off holder (2).
Use special tool 72 1 200 for collecting rivet remnants.
Insert butyl in collecting tray of special tool to fix rivet remnants in position and secure them against falling out.
Position special tool from rear on rivet head in cavity and remove rivet remnants.
If rivet remnants can not be removed from side member, it must be treated with cavity sealant so that rivet remnants are stuck in position and can not move in the side member.
