51 47 152 Removing and installing/replacing left luggage compartment wheel arch panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020
Necessary preliminary work:
- Remove SHOULDER TRIM PANEL, LEFT

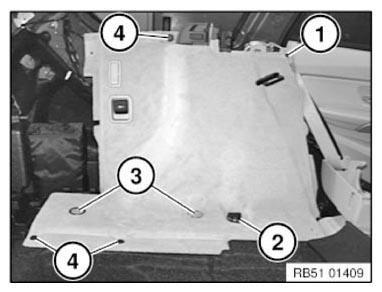

Release screw (1).
Remove lashing eye (2).
Tightening torque: 51 47 1 AZ .
Release trims (3) for adaptive fixing system with special tool 64 1 020.
Remove trim panel.
Replacement:
Convert 12V power socket.
