51 47 162 Removing and installing/replacing right luggage compartment wheel arch panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020
Necessary preliminary work:
- Remove RIGHT CAPPING TRIM PANEL

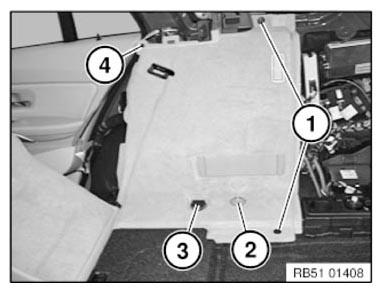

Release expanding rivets (1).
Lever out trim (2) for adaptive fixing system with special tool 64 1 020.
Remove lashing eye (3).
Tightening torque: 51 47 1 AZ .
Release screw (4) and remove trim panel.
