11 13 000 Removing and installing, sealing or replacing oil sump (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove starter motor . See 12 41 020 REMOVING AND INSTALLING/REPLACING STARTER MOTOR (N47) or 12 41 020 REMOVING AND REFITTING/REPLACING STARTER MOTOR (N47 WITH SCR) .
Drain ENGINE OIL .
Remove oil dipstick GUIDE TUBE .
Remove lower sound insulation . See 1371... REMOVING BOTTOM SOUND INSULATION (N47) or 1371... REMOVING LOWER SOUND INSULATION (N47 WITH SCR) .
Remove FRONT AXLE DIFFERENTIAL (AWD).
Removing BEARING SUPPORT (all-wheel drive).

NOTE: Front axle alignment is not required.

IMPORTANT: Engines with surface sealant:
Application time of sealing bead max. 12 minutes.

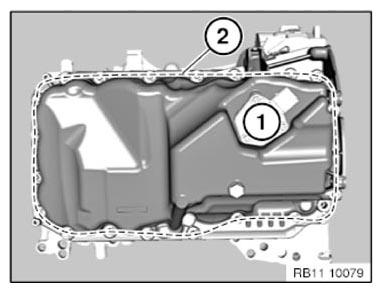

Loosen connector of oil level sensor (1).

Release bolts (2) along dashed line.

Tightening torque: 11 13 2AZ .

Installation note:

Tighten down all screws diagonally and evenly.

Fig 1: Oil Level Sensor Connector And Bolts

G10100243

Courtesy of BMW OF NORTH AMERICA, INC.

Engines with liquid seal:

IMPORTANT: The oil sump can only be loosened in the areas (1) where an aperture is present in the oil sump.

Fig 2: Oil Sump Hole Areas

G09919573

Courtesy of BMW OF NORTH AMERICA, INC.

Use a suitable crow bar (1) at the appropriate point to release the oil sump in direction of arrow.

Fig 3: Releasing Oil Sump Using Crow Bar

G09919574

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with special tool (11 4 472).

Installation note:

Sealing surfaces must be free of oil, grease and cleaning agents.

Fig 4: Cleaning Sealing Surface With Special Tool (11 4 472)

G09919575

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with special tool (11 4 471).

Installation note:

Sealing surfaces must be free of oil, grease and cleaning agents.

Fig 5: Cleaning Sealing Surface With Special Tool (11 4 471)

G09919576

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound:

APPLY THE SEALING COMPOUND IN AREA (1) .

Make sure that the sealing bead runs along the inner edge.

The oil return channel must be completely surrounded (see arrow).

Installation note:

The oil sump must be installed approximately 10 minutes after application of the sealing compound.

Fig 6: Sealing Compound Applying Area

G09943809

Courtesy of BMW OF NORTH AMERICA, INC.

Sealant height approximately 2 to 2.5 mm.

Installation note:

Special tool 11 8 780 is only necessary if the engine or the transmission is removed.

Fig 7: Positioning Special Tool (11 8 780) With Transmission Bolts

G08469154

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 8 780 with transmission bolts (1) so that engine oil sump is exactly flush with engine block.

Attaching the oil sump.

Assemble engine.
