11 43 000 Removing and installing/renewing guide tube for oil dipstick (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ACOUSTIC COVER
Release electronics box and set aside. See 12 14 550 REPLACING ELECTRONICS BOX (N47) or 12 14 550 REPLACING CONTROL UNIT BOX (N47 WITH SCR) .

Release fuel return line (1) from the retaining clip.

Release fuel delivery (2) from the retaining clip.

Guide tube (3).

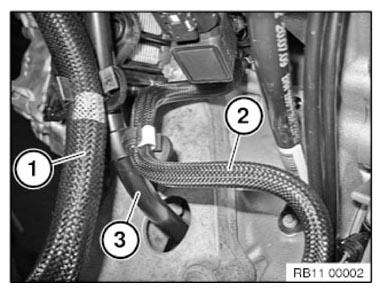

Fig 1: Fuel Return Line, Fuel Delivery And Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove guide tube (2) in direction of arrow.

Installation note:

Replace O-ring.

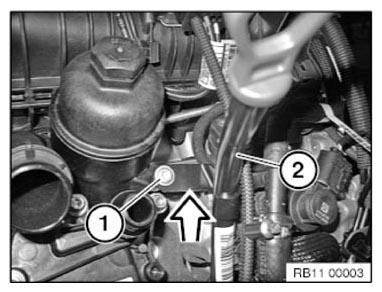

Fig 2: Removing Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check oil level, correcting if necessary.
