11 31 025 Replacing intake camshaft (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

REMOVE CYLINDER HEAD COVER .

Crank engine with special tool 11 6 480 to TDC firing position of cylinder no. 1.

IMPORTANT: Do not turn the engine against the direction of travel.

Fig 1: Special Tool (11 6 480)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap of gear case cover.

Block crankshaft with cylinder no. 1 in TDC firing position with special tool 11 5 320 .

Fig 2: Special Tool (11 5 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (1).

Fig 3: Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove camshaft sprocket from the intake camshaft and feed out of timing chain.

Store timing chain in cylinder head.

Fig 4: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake camshaft.

NOTE: It is necessary to adjust the engine timing in order to remove the intake camshaft.

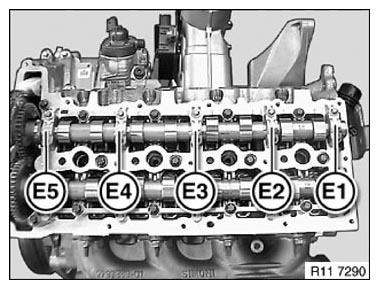

Release bearing caps E1 to E5 by 1/2 a turn at a time, working from the outside inwards.

Pull intake camshaft upwards to remove.

Fig 5: Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

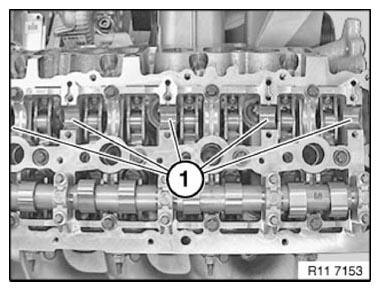

Oil all bearing positions (1).

Fig 6: Bearing Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position of the roller cam followers (risk of damage!) .

Fig 7: Roller Cam Followers Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install intake camshaft.

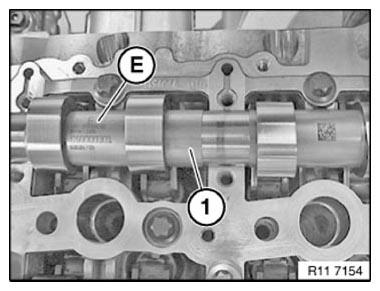

Install intake camshaft (1) marked with (E).

Fig 8: Intake Camshaft Mark

Courtesy of BMW OF NORTH AMERICA, INC.

The marks on both camshafts (A and E) must agree when installing intake camshaft (E) (see Fig 9).

Fig 9: Exhaust Sprocket Wheel Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bearing caps E1 to E5 by 1/2 a turn at a time on the camshaft carrier, working from the inside outwards.

Tightening torque: 11 31 2AZ .

Fig 10: Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Place the camshaft sprocket with timing chain on the intake camshaft such that bolts (1) are located in the center of the elongated holes.

Insert bolts (1).

Tighten bolts (1) to 10 Nm.

Release bolts (1) again by a 90° turn.

Fig 11: Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Install CHAIN TENSIONER (1).

Tightening torque: 11 12 3AZ .

Fig 12: Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 8 760 on exhaust camshaft.

NOTE: Special tool 11 8 760 must lie flush on cylinder head.

Fig 13: Placing Special Tool (11 8 760) On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Marks on both camshafts (A and E) must agree (be aligned) (see Fig 14).

Fig 14: Exhaust Sprocket Wheel Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten camshaft bolts (1).

Tightening torque: 11 31 1AZ .

Fig 15: Camshaft Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine twice in direction of rotation with special tool 11 6 480 up to TDC firing position of cylinder no. 1.

Check CAMSHAFT ADJUSTMENT .

IMPORTANT: Do not crank the engine back !

Fig 16: Special Tool (11 6 480)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
