11 31 090 Removing and installing/replacing chain tensioner piston (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

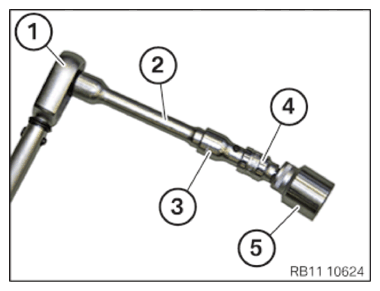

NOTE: To make it easier to remove and install the chain tensioner, it is advisable to arrange the tools (1 to 5).
Connect torque wrench (1) to an extension (2) 1/2 inch with 130 mm and (3) 52 mm.
For better accessibility to the chain tensioner, a swivelable extension (4) with 12° can be used.
Connect nut (5) 24 mm or 27 mm to the swivelling extension (4).

Fig 1: Torque Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (1).

Tightening torque: 11 12 3AZ .

IMPORTANT: Have a cleaning cloth ready. A small quantity of engine oil will emerge after the screw connection has been released.
Make sure no oil runs into the clutch housing.

Installation note:

Replace the sealing ring.

Fig 2: Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

If the chain tensioner is reused, its oil chamber must be drained. Place chain tensioner on a level support and slowly compress.

Repeat process twice.

Fig 3: Compressing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new chain tensioner (1) with AF 24 mm.

Fig 4: Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
