63 13 250 Removing and installing/replacing front left or right side repeater mirror

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXTERIOR MIRROR ON FRONT DOOR
Remove RETAINING RING ON EXTERIOR MIRROR

Release plug connection (1) on central connector (2) and disconnect.

Fig 1: Identifying Central Connector Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable (1).

Feed side repeater (3) in direction of arrow out of mirror housing (2).

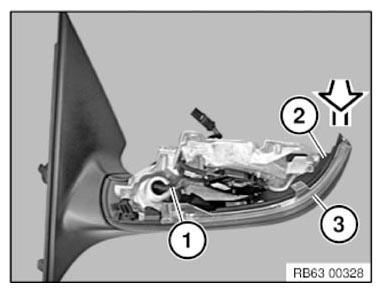

Fig 2: Removing Side Repeater

Courtesy of BMW OF NORTH AMERICA, INC.
