51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL

Release rubber window seal (2) in area of mirror triangle and fold forwards.

Installation note:

Use suitable phillips screwdriver to correctly position nipples of rubber window seal (2) over bore hole.

Unlock plug connection (1) for rear-view mirror (3) and disconnect.

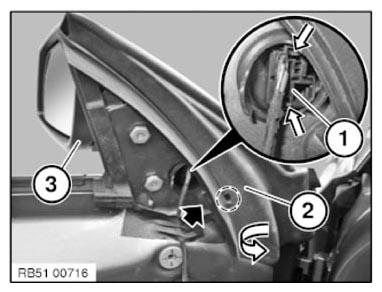

Fig 1: Identifying Rubber Window Seal, Rear-View Mirror, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 51 16 1AZ .

Remove rear-view mirror on front door with rubber seal (1) and set aside.

Installation note:

Correctly insert rubber seal (1) into recess of mirror mounting frame.

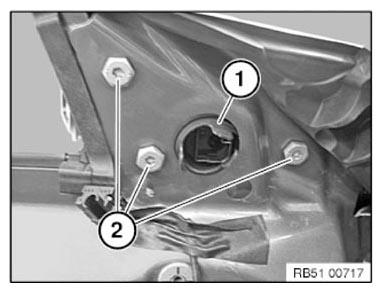

Fig 2: Identifying Rubber Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly insert mirror base (2) into rubber window seal (1).

Replacement

Convert HOUSING ON EXTERIOR MIRROR

Fig 3: Inserting Mirror Base Into Rubber Window Seal
Courtesy of BMW OF NORTH AMERICA, INC.
