51 16 045 Removing and installing or replacing retaining ring on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR

Version with lane change warning only:

Remove PROTECTIVE CAP FROM EXTERIOR MIRROR

Version with lane change warning only:

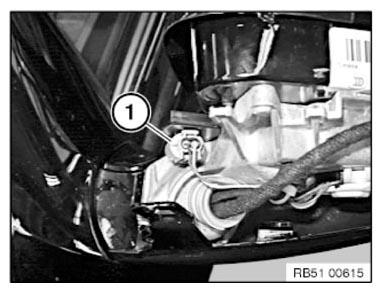

Unlock plug connection (1) for optical signal transmitter and disconnect.

Fig 1: Identifying Plug Connection

G10062653

Courtesy of BMW OF NORTH AMERICA, INC.

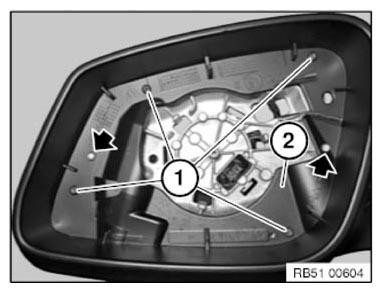

Release screws (1) from circlip (2).

Installation note:

Make sure retaining ring (2) is correctly seated.

Fig 2: Locating Circlip And Screws

G10062654

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror forwards.

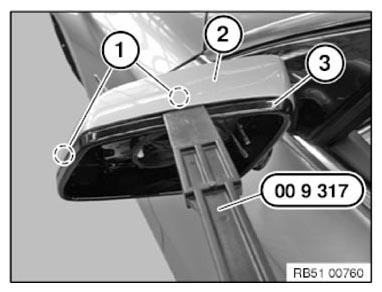

Unlock latch mechanisms (1) between protective cap (2) and retaining ring (3) using special tool 00 9 317 .

Feed out retaining ring (3) to the rear.

Fig 3: Unlocking Latch Mechanisms

G10062655

Courtesy of BMW OF NORTH AMERICA, INC.
