63 12 140 Remove and install left LED technology headlight

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

WARNING: Follow notes for HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS) .

Lever out expanding rivets (1) on engine compartment lid seal (2).

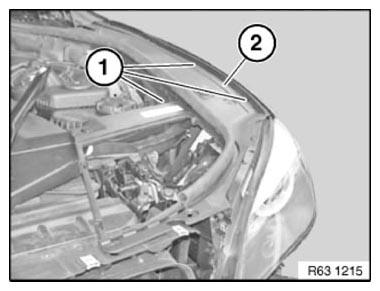

Fig 1: Identifying Engine Compartment Lid Seal And Expanding Rivets

G10064427

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seal for engine compartment lid (2) on left.

Release screws (1) on headlight (3) at top.

Tightening torque 63 12 1AZ .

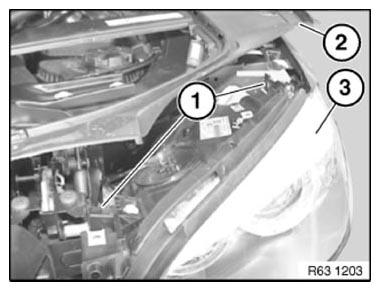

Fig 2: Identifying Left Engine Compartment Lid Seal, Headlight, And Screws

G10064428

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on headlight (2) at bottom.

Tightening torque 63 12 1AZ .

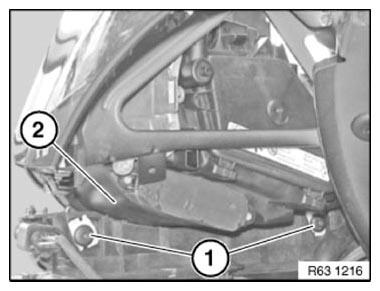

Fig 3: Identifying Headlight Screws

G10064429

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out headlight (1) in direction of arrow slightly.

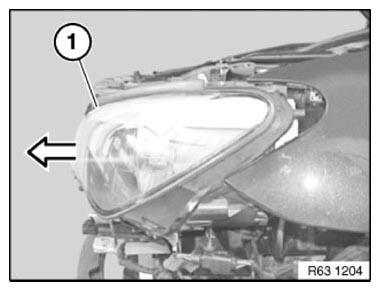

Fig 4: Pulling Out Headlight

G10064430

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on headlight (2) and remove headlight.

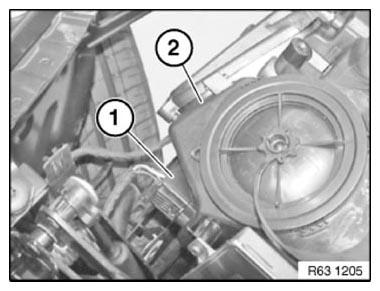

Fig 5: Identifying Headlight Plug Connection

G10064431

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjust HEADLIGHT .
