63 10 004 Adjusting headlights

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with PREREQUISITES FOR HEADLIGHT ADJUSTMENT .

IMPORTANT: Do not damage adjusting screws when adjusting headlights.

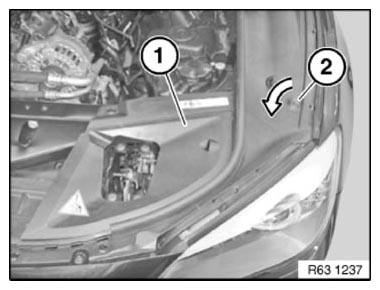

Remove lid (1) and turn sealing cap (2) in direction of arrow and remove.

Fig 1: Turning Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

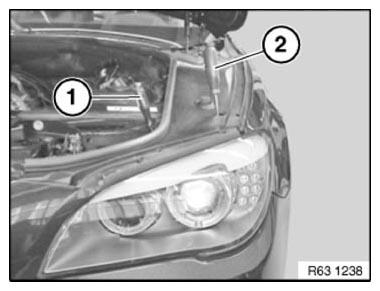

Carry out headlight adjustment at adjusting screws below openings (1) and (2).

Adjusting screw primarily for vertical adjustment
Adjusting screw primarily for lateral adjustment

Fig 2: Identifying Headlight Adjustment Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Attention: for height adjustment of LED headlights F01, F02, F03.

If necessary, required height adjustment may only be carried out through height adjustment of LED headlights (turn adjusting screw (1) counter-clockwise).

LED headlight adjusted too low:
Adjust LED headlight higher to correct dimension at adjusting screw (1) (turn adjusting screw (1) counter-clockwise).
LED headlight adjusted too high:
Adjust LED headlight at adjusting screw (1) too low (turn adjusting screw (1) clockwise). Only afterwards adjust LED headlight higher to correct dimension at adjusting screw (1) (turn adjusting screw (1) counter-clockwise).
After headlight adjustment:
Perform reference run. To do so, switch the LED headlight off and on. Check again headlight adjustment.
