63 10... Adjust the low-beam headlight (with electronic headlight adjustment device MAHA Lite 3)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with PREREQUISITES FOR HEADLIGHT ADJUSTMENT .

Refer to the manufacturer's operating instructions for the headlight adjustment device.

NOTE: On vehicles with anti-glare high-beam headlight it is sufficient to adjust the low-beam headlight.
Only in the event of a customer complaint regarding dazzle/glare Adjust anti-glare high-beam headlight separately.

Switch on the headlight adjustment device by pressing any button.

Press F2 button. The shown display screen appears.

Perform the following settings:

Passenger car must be selected
Enter the setting dimension of the headlight via the buttons F1/F2: - 1, 0 % to - 1, 1 %
(see "light/dark boundary of the headlight in the headlight adjustment device" in PREREQUISITES FOR HEADLIGHT ADJUSTMENT ).
The right/left-hand traffic must be selected according to the country.
Select the headlight type via the button F3 :
- EC : for halogen and xenon headlights
- EC LED : for LED headlight

The adjusted values are adopted for future measurements.

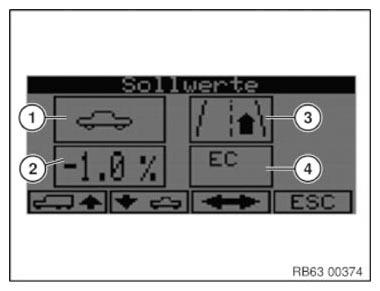

Fig 1: Display - Headlight Adjustment Screen

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before measuring/adjusting the low-beam headlight, it is absolutely necessary to determine the TRANSPARENT SCREEN OF THE HEADLIGHT .
An incorrect selection leads to an incorrect setting.

Transparent screen Type I:

Press briefly the button for the applicable side of the vehicle (3) until symbol (1) appears.

Transparent screen Type II :

Press longer the button for the applicable side of the vehicle (3) until symbol (4) appears.

The following symbols appear in the display:

O. K. (2): Adjustment is optimal.
O. K. (5): Adjustment is within the legal tolerance range. ADJUST HEADLIGHT until O. K. (2) is displayed.
Arrows (6): Adjustment is incorrect. ADJUST HEADLIGHT using arrows (6) until O. K. (2) is displayed.

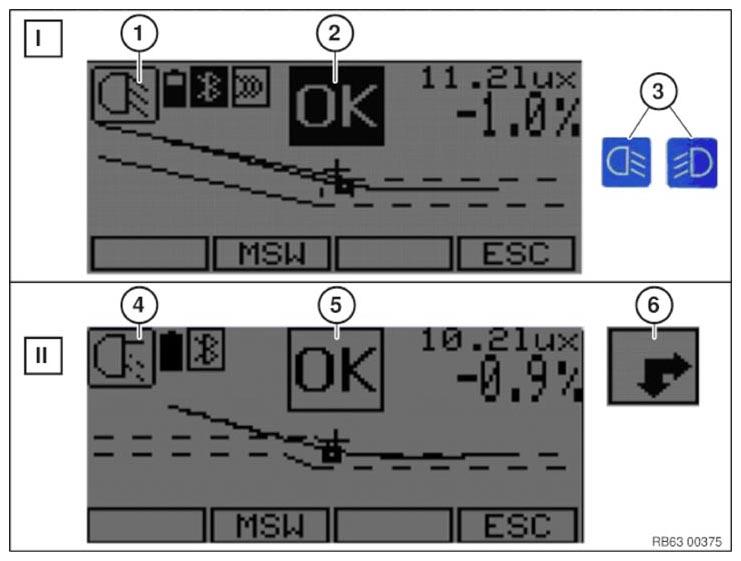

Fig 2: Identifying Symbols Displayed On Screen

Courtesy of BMW OF NORTH AMERICA, INC.
