63 10... Test requirements for headlights vertical aim adjustment

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not perform headlight adjustment immediately after lowering the vehicle on the vehicle hoist. In this case, move the vehicle for approx. 15 m on its own wheels before headlight adjustment.

IMPORTANT: Refer to the manufacturer's operating instructions for the headlight adjustment device.

Park vehicle on flat and even surface.
Replace faulty glass and mirrors and blackened light bulbs.
Check correct adjustment of headlights in relation to engine compartment lid (gap dimensions).
Check tire pressure and correct if necessary.
Only halogen headlight, fog light and headlight for Dynamic Light Spot:
Apply load equivalent to one person on driver's seat (approx. 75 kg).
Vehicle with full fuel tank or appropriate additional weight in luggage compartment.
Switch the ignition on.

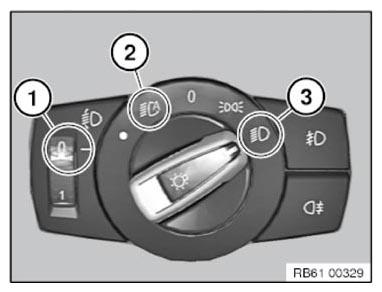

Manual headlight beam throw adjustment: Move handwheel to neutral position (1).
Light switch must be in "low beam/driving light" position (3).
Do not carry out the headlight adjustment in the "automatic driving lights control" light switch position (2).
Version with Xenon or LED (automatic headlight beam throw adjustment): Wait 80 s after switching on lights. During this time, do not move the vehicle and avoid vibrations.

Fig 1: Identifying Light Switch Positions And Handwheel For Manual Headlight Beam Throw Adjustment
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not move the vehicle and steering wheel during the measuring and adjustment procedures.
Wheels must be in the straight-ahead position.

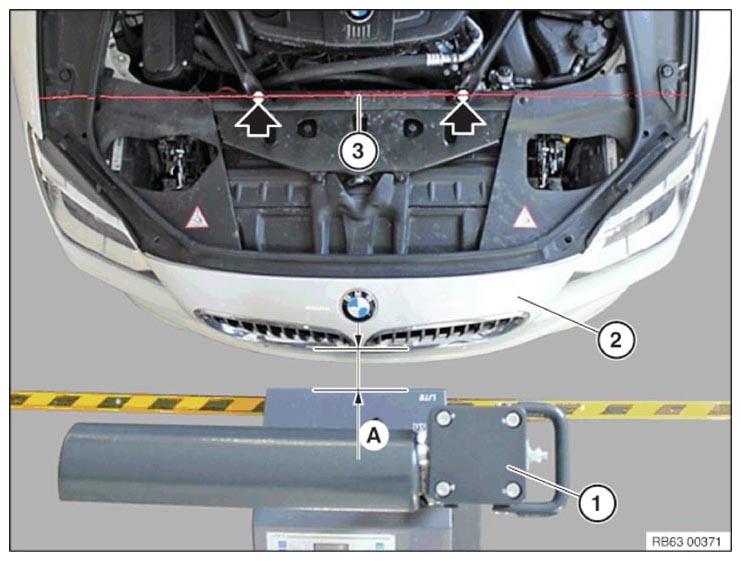

IMPORTANT: A correct measurement/adjustment requires exact positioning of the headlight adjustment device (1).
Headlight adjustment device (1) must stand vertically to the vehicle longitudinal axis.
This applies to all headlights.

Position headlight adjustment device (1) centrally in front of vehicle (2) at distance (A) = 10 cm .

Align headlight adjustment device (1) by laser beam (3). Laser beam (3) must hit two suitable points, e.g. marked by arrows.

IMPORTANT: Points must be vehicle proof.
Points must be separated as wide as possible.
Trim panels are not suitable.

If the headlight adjustment device (1) does not have a laser beam (3), complete the alignment analogous with the line in the mirror.

Fig 2: Positioning Headlight Adjustment Device

Courtesy of BMW OF NORTH AMERICA, INC.

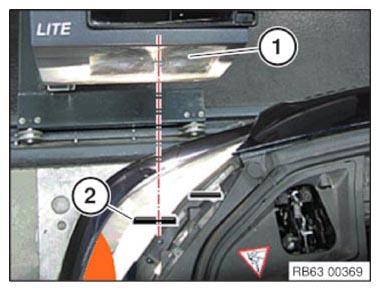

IMPORTANT: Always perform positioning of the headlight adjustment device (1) at the outer headlight (2).

The center of the collecting lens (1) must match the center of headlight (2) horizontally.

Fig 3: Aligning Collecting Lens With Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

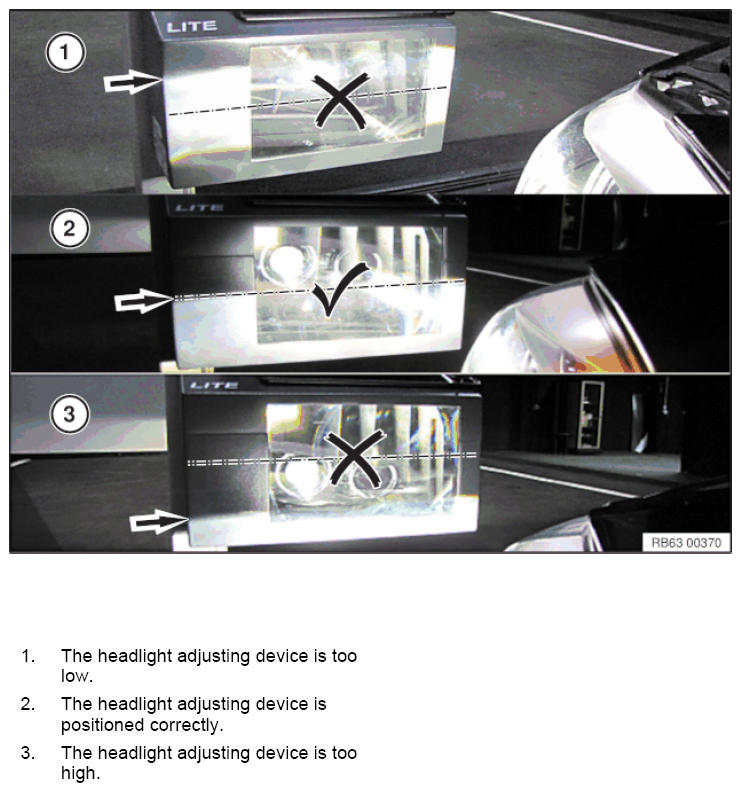

Corrections are made by raising or lowering the headlight adjustment device.

Fig 4: Identifying Correct Position For Headlight Adjustment Device

Courtesy of BMW OF NORTH AMERICA, INC.

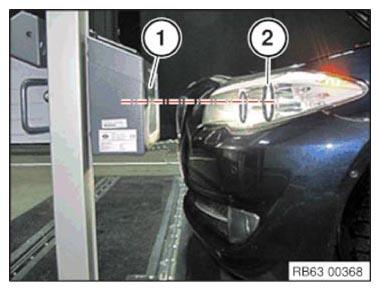

When positioned correctly, the light/dark boundary of the headlight (marked with arrow) must hit the collecting lens of the adjusting device in the center:

The center of the collecting lens (1) must match the center of headlight (2) vertically.

Corrections are made by sliding the side of the headlight adjusting device to the left or right.

Fig 5: Identifying Center Of Collecting Lens And Center Of Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The figure shows an example for the transparent screen of halogen headlights.
OVERVIEW OF TRANSPARENT SCREENS OF DIFFERENT HEADLIGHT TYPES .

Set marker line {M} on aimer to {e}. Scale graduations on the headlight adjustment device are equal to a gradient in cm at a distance of 10 meters.

Light/dark boundary of headlights in the headlight adjustment device

{e} Setting dimension, headlights:

Value is indicated on the headlight housing and on vehicles with production date up to 2011 on the type plate in %.
(e.g.: 1.0 % = -10 cm/10 m = - 1.0 % on the headlight adjusting device)
Value 1.0 % (adjustment value - 1.0 % ) applies to all BMW Group vehicles.
Exception: E53, E70, E71, E72, E83, F15, F16, F25, F26, R60, R61. For these vehicles, value 1.1% (adjustment value - 1.1% ) applies.

Setting dimension, fog lights:

Value 2.0 % = -20 cm/10 m = - 2.0 % on the headlight adjusting device applies to all BMW Group vehicles.

Setting dimension, dynamic light spot headlight:

Value 0.0 % = 0 cm/10 m = 0 % on the headlight adjusting device applies to all BMW Group vehicles.

{H} Height of headlight center above parking surface

{h} {H} - {e} = height of marking line above parking surface

+ Central mark = center point of high beam headlight.

{M} Marker line of the headlight adjustment device

{S} Standing surface of the vehicle and headlight adjustment device

Adjustment dimension {e} is only valid for EUR. Observe differing national regulations.

Fig 6: Identifying Setting Dimension Of Headlights And Fog Lights

Courtesy of BMW OF NORTH AMERICA, INC.
