63 10... Adjust the high-beam headlight (with electronic headlight adjustment device MAHA Lite 3)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The high-beam headlight can only be adjusted in the following cases:

The low-beam headlight and high-beam headlight are located in separate housings and each has a separate range of adjustment (e.g. E52, BMW i 01).
Low-beam headlight and high-beam headlight are located in one housing with one separate range of adjustment each.
With separately mounted additional headlights (e.g. MINI).

On vehicles from 1995, separate adjustment of the high-beam headlight is not possible.
(Exception E52, BMW i 01, additional headlight MINI)

Comply with PREREQUISITES FOR HEADLIGHT ADJUSTMENT .

Refer to the manufacturer's operating instructions for the headlight adjustment device.

Necessary preliminary work:

ADJUST THE LOW-BEAM HEADLIGHT

Switch on the headlight adjustment device by pressing any button.

Press F2 button. The shown display screen appears.

Perform the following settings:

The passenger car must be selected.
Enter the setting dimension of the headlight via the buttons F1/F2: - 1.0 % to - 1.1 %
(see "light/dark boundary of the headlight in the headlight adjustment device" in PREREQUISITES FOR HEADLIGHT ADJUSTMENT ).
The right/left-hand traffic must be selected according to the country.
Select the headlight type via the button F3 :

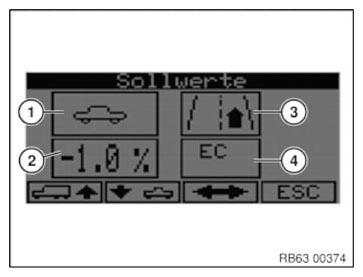

Fig 1: Display - Headlight Adjustment Screen
Courtesy of BMW OF NORTH AMERICA, INC.
- EC : for halogen and xenon headlights
- EC LED : for LED headlight

The adjusted values are adopted for future measurements.

Press briefly the button for the applicable side of the vehicle (1) until symbol (2) appears.

The following symbols appear in the display:

O. K. (5): Adjustment is optimal.
O. K. (4): Adjustment is within the legal tolerance range. Adjust high-beam headlight until O. K. (5) is displayed.
Arrows (3): Adjustment is incorrect. Adjust high-beam headlight using arrows (3) until O. K. (5) is displayed.

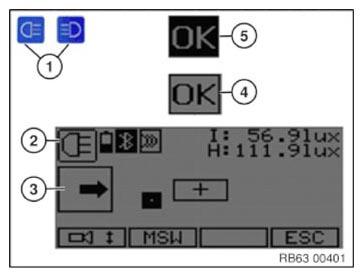

Fig 2: Identifying Symbols Displayed On Screen
Courtesy of BMW OF NORTH AMERICA, INC.
