63 11 845 Replacing left LED fan (inner)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 296 785

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY
Remove HEADLIGHT DRIVER MODULE

Release latch mechanism (1) and screws underneath.

Tightening torque 63 11 6AZ .

Remove cover (2).

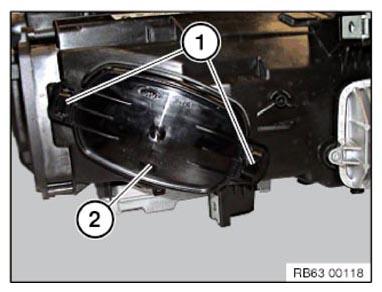

Fig 1: Identifying Cover And Latch Mechanism

G10064409

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

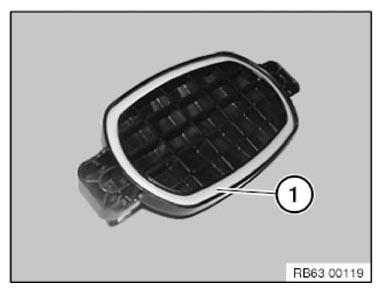

Fig 2: Identifying Gasket

G10064410

Courtesy of BMW OF NORTH AMERICA, INC.

Press together connector (1) (arrow) and disengage to the rear into light housing.

IMPORTANT: Risk of damage.
Do not bend pins of connector (1).

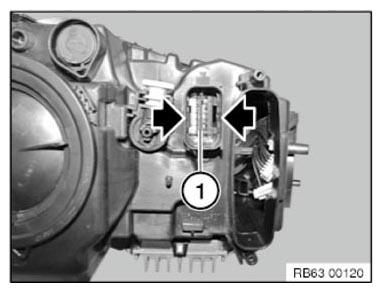

Fig 3: Unlocking Connector

G10064411

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) on LED fan through opening (1). Release screw (3) through opening (1) with special tool 2 296 785 .

Screw (2; 3) tightening torque 63 11 5AZ .

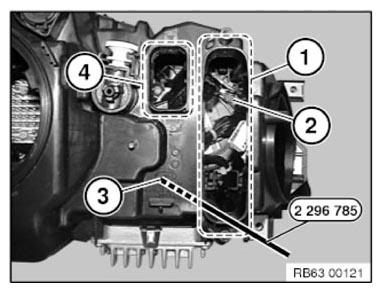

Fig 4: Releasing Screws Using Special Tool

G10064412

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove fan (2) to the side.

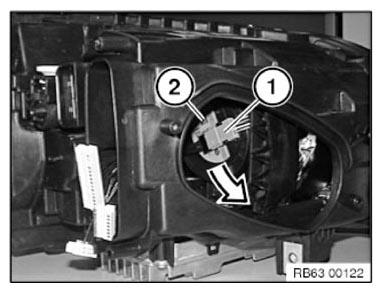

Fig 5: Removing Fan

G10064413

Courtesy of BMW OF NORTH AMERICA, INC.
