63 11 570 Removing and installing/replacing the left LED technology headlight driver module

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release screws (1).

Tightening torque 63 11 2AZ .

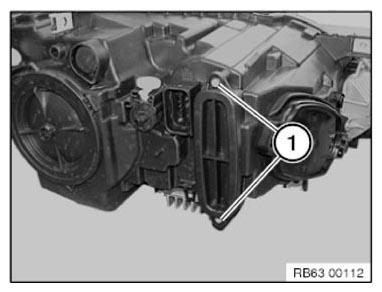

Fig 1: Identifying Screws

G10064389

Courtesy of BMW OF NORTH AMERICA, INC.

Pull headlight driver module (2) out of the headlight.

Unlock plug connections (1) and disconnect.

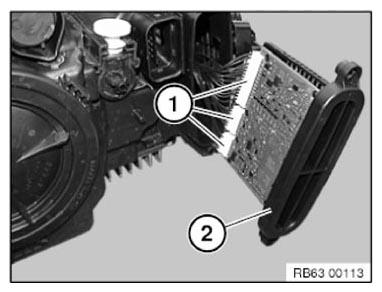

Fig 2: Identifying Headlight Driver Module And Plug Connections

G10064390

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

Latch mechanisms (2) must not be damaged or missing.

Fig 3: Identifying Latch Mechanisms And Gasket

G10064391

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
Perform encoding, if necessary
