41 62 000 Removing And Installing Tailgate
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Necessary preliminary work:
- Remove PANEL FOR TAILGATE .
- Disconnect all cable plug connections and pull wiring harness out of tailgate.
Carry over the work step shown symmetrically to the other side of the vehicle.

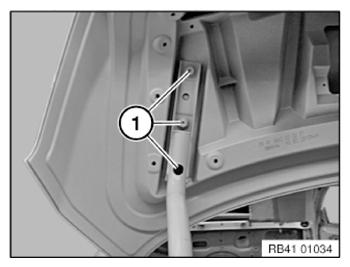

Release screws (1) and (2) and remove tailgate with a second person.
Tightening torque 41 62 1AZ .
Installation note:
Install tailgate at screw locations on hinge.
If necessary, ADJUST TRUNK LID .
If reversing camera optional equipment installed:
Calibrate REVERSING CAMERA .
