37 14 515 Replacing rear left or right ride height sensor

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) !

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Ride Height Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ .

Installation note:

Sensor lever (3) must point from ride height sensor to respective rear wheel.

Replace self-locking nut.

Release screws (1) and remove ride height sensor (3).

Tightening torque 37 14 2AZ .

Fig 2: Identifying Ride Height Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only on F15/F16/F85/F86 vehicles:

Holder (1) of the ride height sensor must be mounted on the axle support in such a way that the area marked in the image (1) and (2) has the maximum size!

Non-compliance can lead to fault message and vehicle inclination.

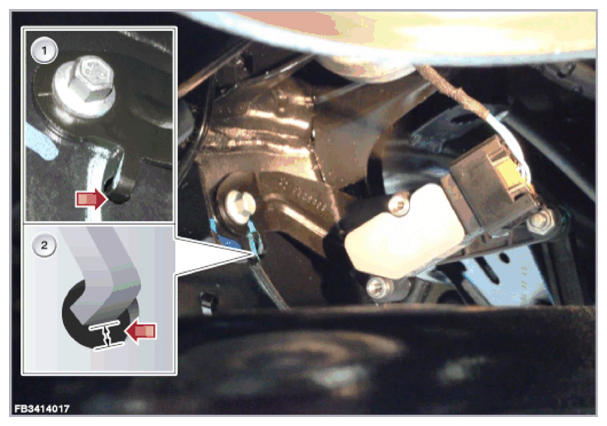

Fig 3: Locating Ride Height Sensor Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1). Detach holder (2) from ride height sensor.

Tightening torque 37 14 3AZ .

Fig 4: Identifying Ride-Height Sensor Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out RIDE HEIGHT ADJUSTMENT
Check HEADLIGHT SETTING , correct if necessary
