61 31 336 Removing and installing/replacing trim for gear selector switch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove CENTER CONSOLE COVER

Release screws (1).

Slip out cover for gear selector switch (2) via selector lever (3).

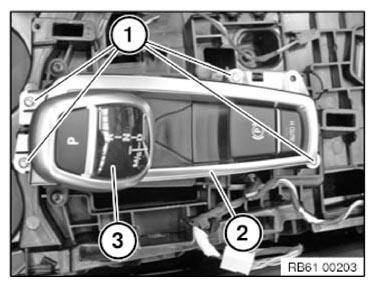

Fig 1: Identifying Gear Selector Switch, Selector Lever, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection (1) from switch for electromechanical parking brake (2).

Replacement

Modify SWITCH FOR ELECTROMECHANICAL PARKING BRAKE (2).

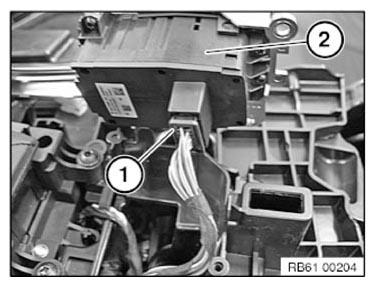

Fig 2: Identifying Parking Brake Switch And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
