61 31 172 Removing and installing/replacing switch for electromechanical parking brake
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Disconnect NEGATIVE BATTERY CABLE (to avoid fault memory entries)
- F03 only: Disconnect both battery negative cables
- Remove GEAR SELECTOR SWITCH COVER

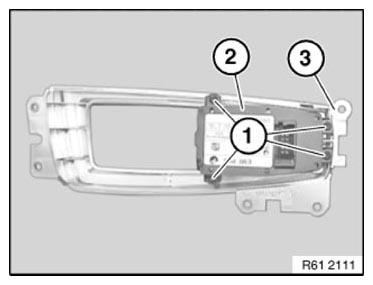

Release screws (1).
Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).
