51 24 300 Removing and installing or replacing left or right gas pressure spring for tailgate
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment wheel arch panel. See REMOVING LEFT WHEEL ARCH TRIM or REMOVING RIGHT WHEEL ARCH TRIM .
Danger of injury.
When removing both gas pressure springs, support tailgate in fully open position with suitable apparatus.
NOTE:

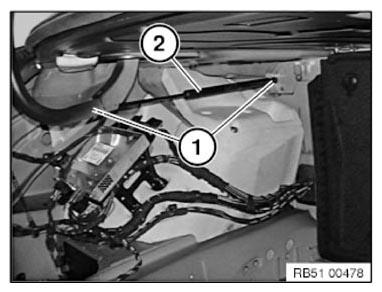

Make a written record of the alignment of gas strut (2) before removing.
UNLOCK AND DISCONNECT BALL SOCKET (1) .
Remove gas strut (2).
