51 24 146 Removing and installing/replacing button for rear lid actuation

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Version with reversing camera:

Remove REVERSING CAMERA

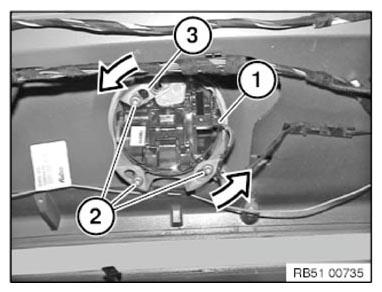

Release and disconnect plug connection (1) at microswitch.

Slacken screws (2) until circlip (3) can be twisted.

Tightening torque 51 24 16AZ .

Turn circlip (3) and remove.

Fig 1: Identifying Circlip, Screws, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

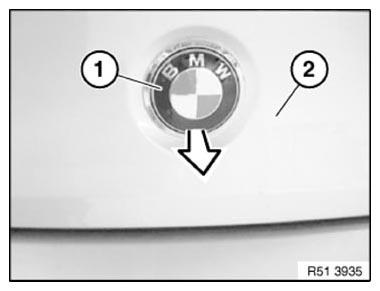

Remove button (1) from tailgate (2) in direction of arrow.

Fig 2: Removing Button From Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform function check with tailgate open.

Replacement:

Install BMW BADGE .
