51 24 100 Removing and installing/replacing tailgate lock
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR REAR LID
Version with reversing camera:
- Remove REVERSING CAMERA

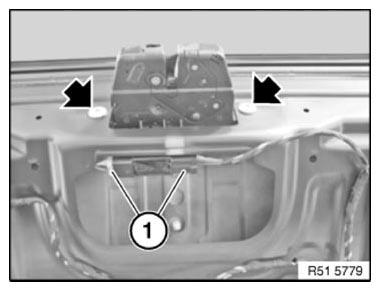

Unlock plug connections (1) and disconnect.
Release screws.
Tightening torque 51 24 1AZ .
Feed out rear lid lock.
Installation note:
Perform function check with tailgate open.
