51 16 273 Removing and installing/replacing fastener for center armrest
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove CENTER ARMREST COVER

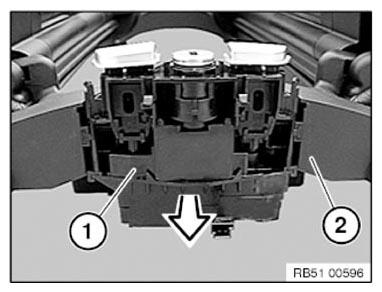

Pull the closure for the center armrest (1) including actuator drive forward and out of the center armrest (2).
Replacement
Operations correspond to:
REMOVING AND INSTALLING/REPLACING LOCK CYLINDER IN CENTER ARMREST
