51 16 190 Removing and installing/replacing lock cylinder in center armrest

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Open storage compartment, if necessary.

Lever out and remove the closure cover (1) with special tool 00 9 325 .

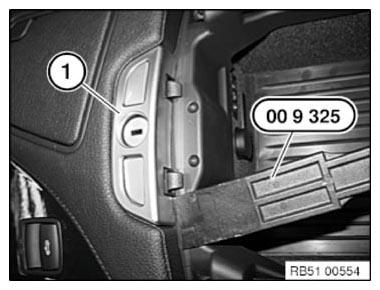

Fig 1: Removing Closure Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert key (1) in lock cylinder (2).

Lever out lock barrel (2) with screwdriver (3) upwards.

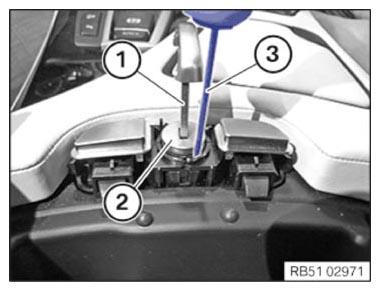

Fig 2: Removing Lock Barrel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Assemble new LOCK BARREL according to the encoding.
