51 16 167 Removing and installing (replacing) center armrest cover

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove REAR CENTER CONSOLE TRIM
Remove both SIDE COVERS ON CENTER CONSOLE

Open storage compartment, if necessary.

Lever out and remove the closure cover (1) with special tool 00 9 325 .

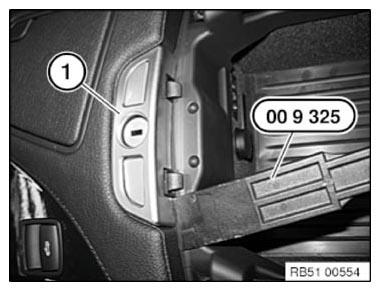

Fig 1: Removing Closure Cover Using Special Tool (00 9 325)

G10062630

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right bolts (2) on center armrest cover (1).

Tightening torque 51 16 13AZ .

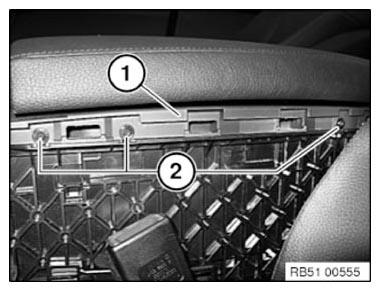

Fig 2: Identifying Center Armrest Cover Bolts

G10062631

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on back of center armrest cover (2).

Tightening torque 51 16 13AZ .

Raise the rear center armrest cover (2) and pull back slightly.

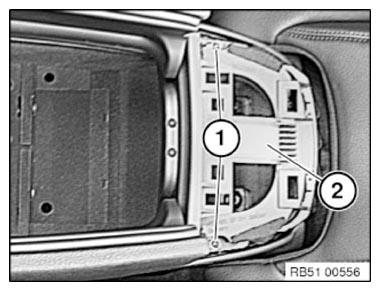

Fig 3: Identifying Screws On Back Of Center Armrest Cover

G10062632

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly feed the retaining lugs (1) into the center console support.

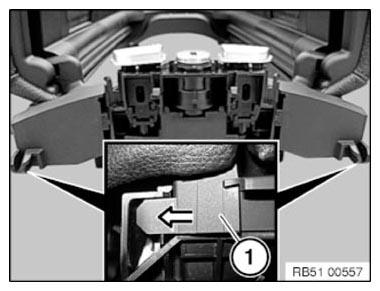

Fig 4: Inserting Retaining Lugs Into Center Console Support

G10062633

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Rebuild CENTER ARMREST LOCK
