51 16... Removing and installing/replacing cup holder decorative trim

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER

Close the cover cap (3) and protect from scratching (tape off). Then open again.

Set center console cover (2) upside down onto a soft support.

Mounting holes (1) point up.

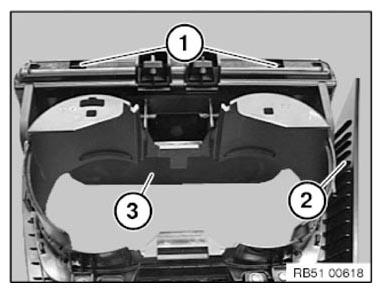

Fig 1: Identifying Center Console Cover, Cover Cap, And Mounting Holes

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work step is shown here removed in semi-transparent condition for purposes of clarity.

Slightly pull the decorative trim (2) in direction of arrow. Thereby unlock the attachment tabs (3) with a screwdriver (1) through mounting holes until the decorative trim (2) can be removed.

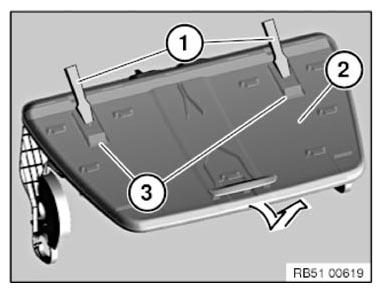

Fig 2: Removing Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mounting hooks, clip tabs and pins (see arrow) on protective cap (1) and decorative trim (2) must not be damaged.

Replacement

Protect new decorative trim against scratches (tape off).

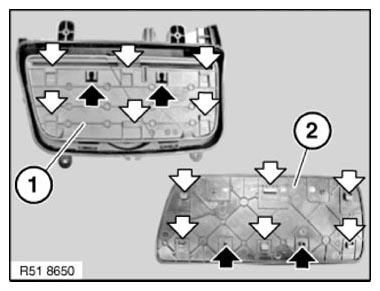

Fig 3: Locating Mounting Hooks, Clip Tabs, And Pins On Protective Cap And Decorative Trim
