51 16 040 Removing and installing/replacing housing on left or right exterior mirror

Necessary preliminary tasks:

• Remove RETAINING RING ON EXTERIOR MIRROR
• Remove PROTECTIVE CAP ON EXTERIOR MIRROR
• Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

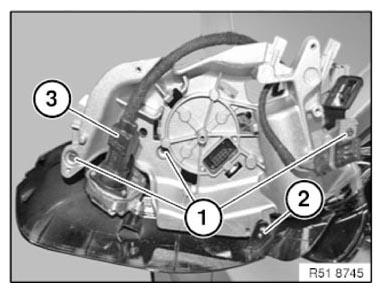

Fig 1: Identifying Connector, Latch Mechanism And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

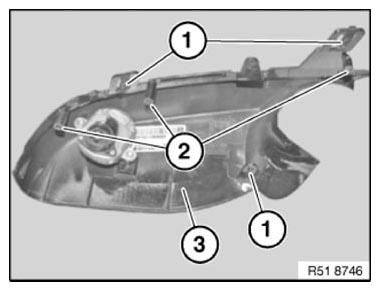

Fig 2: Identifying Exterior Mirror, Housing And Screw Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version:

• Move TOP VIEW CAMERA

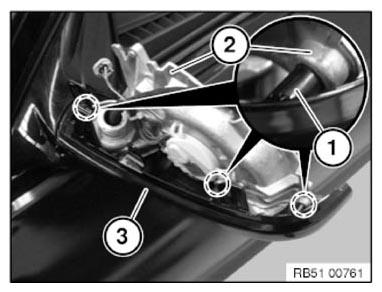

  Fig 3: Identifying Catches And Screw Holes

  Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

• Remove RETAINING RING ON EXTERIOR MIRROR
• Remove PROTECTIVE CAP ON EXTERIOR MIRROR
• Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

If necessary, disconnect the connector from the top view camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

The latch mechanisms (2) on the housing (3) must not be damaged or missing.

Fig 1: Identifying Latch Mechanism, Housing, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Installation note:

The bore holes (1) on the housing (3) must not be damaged or missing.

Fig 2: Identifying Exterior Mirror, Housing And Screw Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove the turn indicator (1) from the housing (2) in the direction of the arrow.

For replacements with top view camera equipment specification:

• Remount the TOP VIEW CAMERA
  Fig 3: Removing Turn Indicator

  Courtesy of BMW OF NORTH AMERICA, INC.
